RTS1BS18 Series

Catalog

CIRCULAR CONNECTOR, ECOMATE AQUARIUS SERIES, CABLE MOUNT RECEPTACLE, 8 CONTACTS

Part	Shell Size - Insert Width	Shell Size - Insert Length	Fastening Type	Material Flammability Rating	Shell Material	Contact Shape	Mounting Type	Shielding	Features	Housing Color	Number of Positions	Orientation	Connector Type	Includes	Includes Total Count	Insert Material	Ingress Protection IP Rating	Ingress Protection Description	Note	Type	Contact Size	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
McGill Microwave Systems RTS1BS18N8S03	8 mm	18 mm	Bayonet Lock	UL94 V-0	Thermoplastic	Circular	Free Hanging (In-Line)	Unshielded	Backshell	Black	8	N (Normal)	Receptacle Housing	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Female Sockets	2.5 mm	125 °C	-40 °C	Crimp

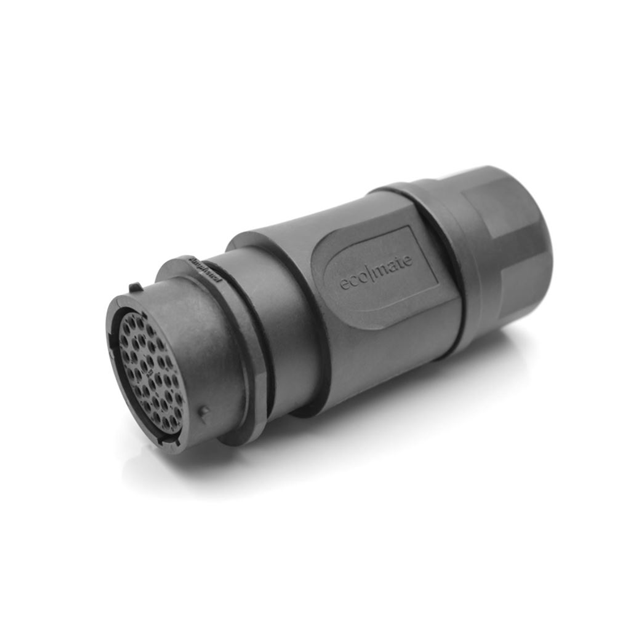

McGill Microwave Systems RTS1BS18N32S03			Bayonet Lock	UL94 V-0	Thermoplastic	Circular	Free Hanging (In-Line)	Unshielded	Backshell	Black	32	N (Normal)	Receptacle Housing	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Female Sockets	20	125 °C	-40 °C	Crimp	32	18
McGill Microwave Systems RTS1BS18N23S03			Bayonet Lock	UL94 V-0	Thermoplastic	Circular	Free Hanging (In-Line)	Unshielded	Backshell	Black	23	N (Normal)	Receptacle Housing	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Female Sockets	16 S	125 °C	-40 °C	Crimp	23	18

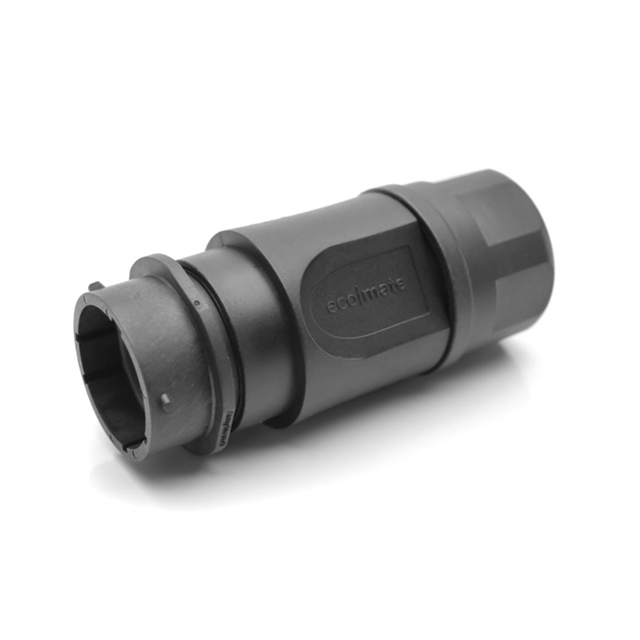

McGill Microwave Systems RTS1BS18N32P03			Bayonet Lock	UL94 V-0	Thermoplastic	Circular	Free Hanging (In-Line)	Unshielded	Backshell	Black	32	N (Normal)	Receptacle Housing	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Male Pins	20	125 °C	-40 °C	Crimp	32	18
