2406857 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

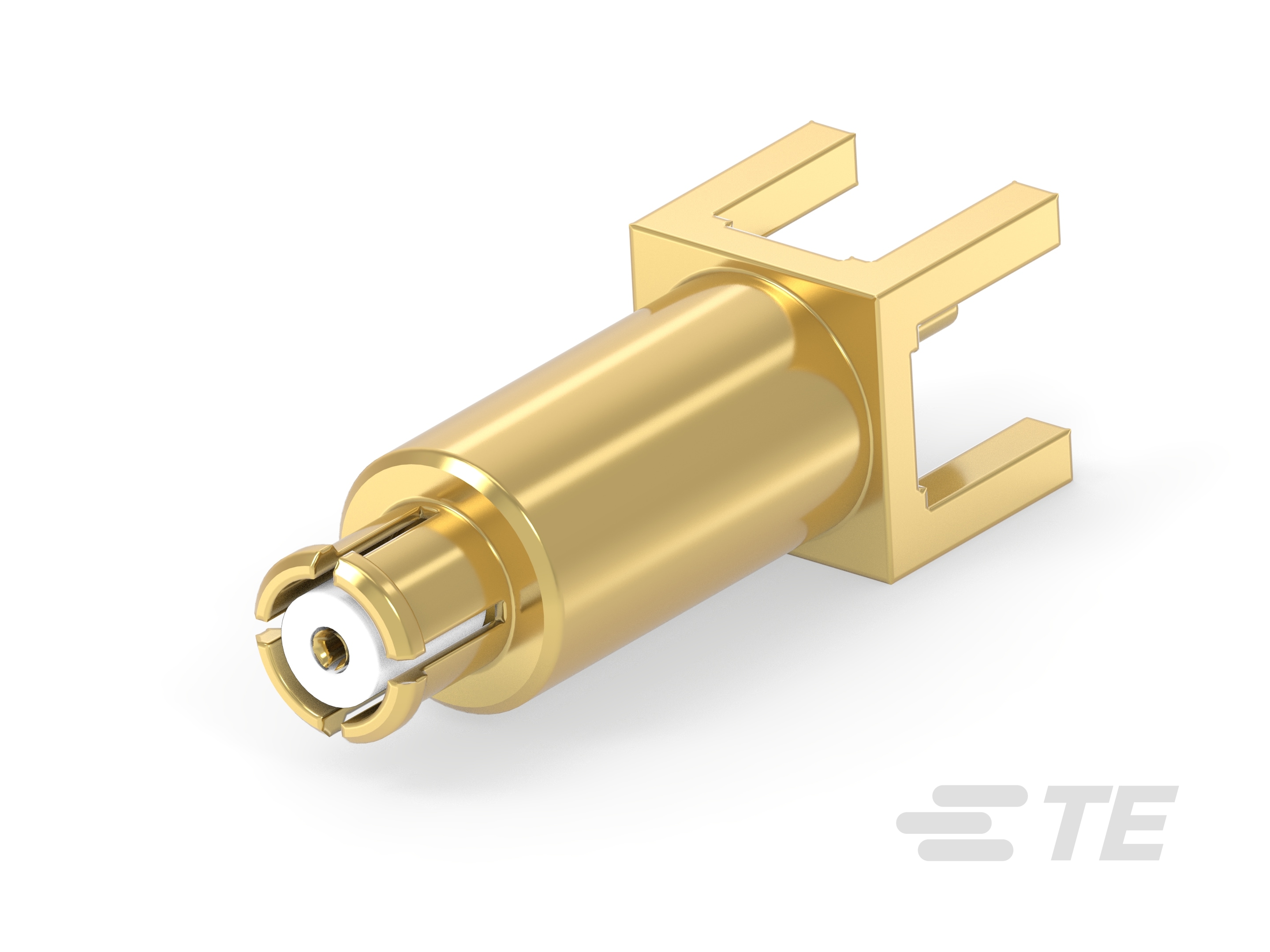

SMP FEMALE S/T FOR PCB MOUNT
| Part | Connector Type | Center Contact Material | Contact Termination | Fastening Type | Shield Termination | Housing Color | Mounting Type | Impedance | Connector Style | Number of Ports | Frequency - Max | Voltage Rating | Body Material | Dielectric Material | Body Finish | Center Contact Plating | Operating Temperature (Max) | Operating Temperature (Min) | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Female Socket Recepture | Beryllium Copper | Solder | Snap-On | Solder | Gold | Through Hole | 50 Ohm | SMP | 1 | 18 GHz | 175 V | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | 125 °C | -40 °C | 100 cycles |
