262105 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

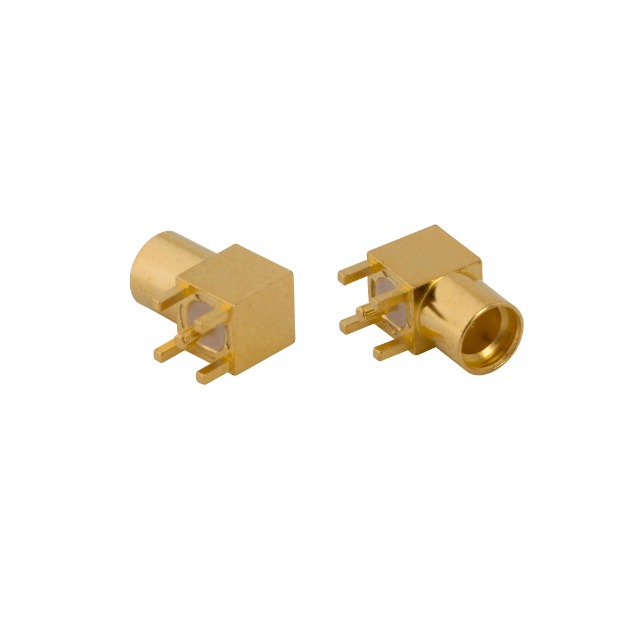

MMCX RIGHT ANGLE PCB JACK, THROU
| Part | Center Contact Plating | Operating Temperature (Min) | Operating Temperature (Max) | Body Finish | Mating Cycles | Body Material | Dielectric Material | Mounting Type | Frequency - Max | Contact Termination | Connector Style | Center Contact Material | Connector Type | Number of Ports | Housing Color | Impedance | Shield Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | -65 °C | 165 °C | Gold | 500 cycles | Brass | Polytetrafluoroethylene (PTFE) | Right Angle Through Hole | 6000 MHz | Solder | MMCX | Beryllium Copper | Female Socket Jack | 1 | Gold | 50 Ohm | Solder | Snap-On |
