CLX6E Series

Catalog

LED, RED, GREEN, BLUE, SMD, SQUARE, R 15MA, G 10MA, B 10MA

Part	Height (Max)	Wavelength - Dominant Color	Wavelength - Dominant (Blue)	Wavelength - Dominant (Red)	Wavelength - Dominant (Green)	Package / Case	Lens Style	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Millicandela Rating (Blue)	Current - Test (Red)	Current - Test Colors	Current - Test (Green)	Current - Test (Blue)	Lens Transparency	Features	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) (Red)	Lens Color	Color	Configuration	Mounting Type	Size / Dimension Width	Size / Dimension Length	Package Name

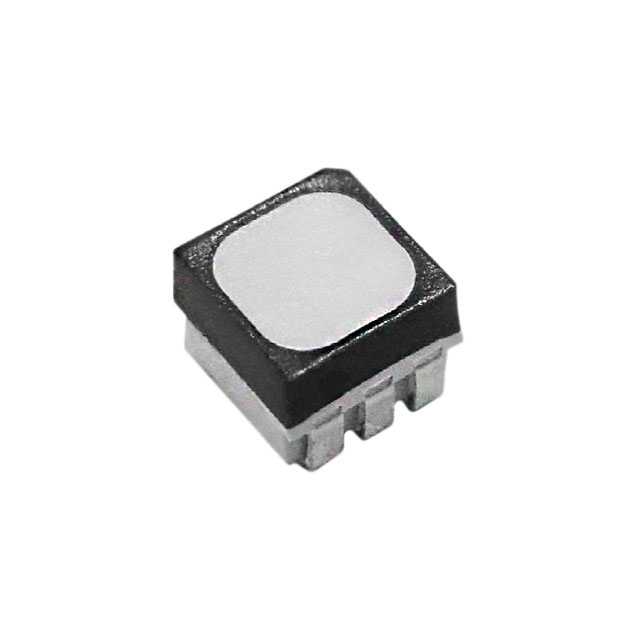

CreeLED, Inc. CLX6E-FKC-CH1M1D1BB7C3D3	2.9 mm	Blue Green Red	470 nm	622 nm	528 nm	6-SMD J-Lead	Flat Top Square	Blue Green Red	1055 mcd	533 mcd	248 mcd	15 mA	Blue Green Red	10 mA	10 mA	Diffused	IPx8	Blue Green Red	2.8 V	3 V	2 V	White	Blue (RGB) Green Red	Independent	Surface Mount	3.4 mm	3.4 mm	6-PLCC
CreeLED, Inc. CLX6E-FKC-CH1M1D1BB7C3D3	2.9 mm	Blue Green Red	470 nm	622 nm	528 nm	6-SMD J-Lead	Flat Top Square	Blue Green Red	1055 mcd	533 mcd	248 mcd	15 mA	Blue Green Red	10 mA	10 mA	Diffused	IPx8	Blue Green Red	2.8 V	3 V	2 V	White	Blue (RGB) Green Red	Independent	Surface Mount	3.4 mm	3.4 mm	6-PLCC
CreeLED, Inc. CLX6E-FKC-CHNPMPDGBB79363	2.9 mm	Blue Green Red	473 nm	622 nm	533 nm	6-SMD J-Lead	Flat Top Square	Blue Green Red	1055 mcd	580 mcd	248 mcd	15 mA	Blue Green Red	10 mA	10 mA		IPx8	Blue Green Red	2.8 V	3 V	2 V		Blue (RGB) Green Red	Independent	Surface Mount	3.4 mm	3.4 mm	6-PLCC
CreeLED, Inc. CLX6E-FKC-CHKMPDGBB79363	2.9 mm	Blue Green Red	470 nm	622 nm	528 nm	6-SMD J-Lead	Flat Top Square	Blue Green Red	1055 mcd	533 mcd	248 mcd	15 mA	Blue Green Red	10 mA	10 mA	Diffused	IPx8	Blue Green Red	2.8 V	3 V	2 V	White	Blue (RGB) Green Red	Independent	Surface Mount	3.4 mm	3.4 mm	6-PLCC
