VR25 Series

Catalog

RES, 1.5M, 0.25W, AXIAL, METAL FILM ROHS COMPLIANT: YES

Part	Package / Case	Resistance	Number of Terminations	Features	Size / Dimension Length	Size / Dimension Diameter	Power (Watts)	Power (Watts) Options	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Composition	Temperature Coefficient	Tolerance
Vishay Dale VR25000001504JA100	Axial	1.5 MOhm	2	Automotive AEC-Q200 Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	5 %
Vishay Dale VR25000003303JA100	Axial	330 kOhm	2	Automotive AEC-Q200 Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	5 %

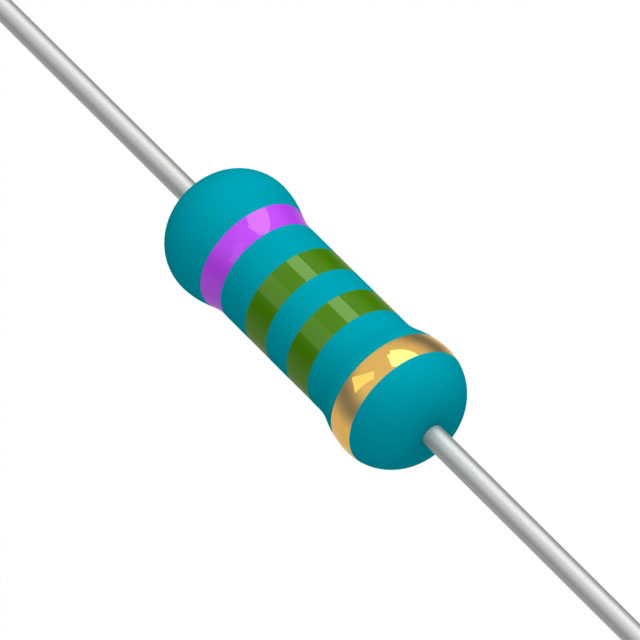

Vishay Dale VR25000007504JR500	Axial	7.5 MOhms	2	Automotive AEC-Q200 High Voltage Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	5 %
Vishay Dale VR25000003303JA100	Axial	330 kOhm	2	Automotive AEC-Q200 Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	5 %

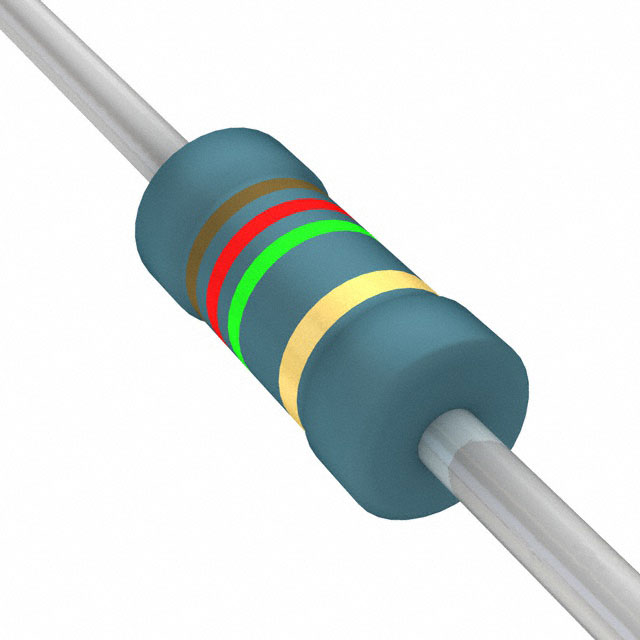

Vishay Dale VR25000001204JA500	Axial	1.2 MOhm	2	Automotive AEC-Q200 High Voltage Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	5 %
Vishay Dale VR25000002205KA100	Axial	22 MOhms	2	Automotive AEC-Q200 Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	10 %

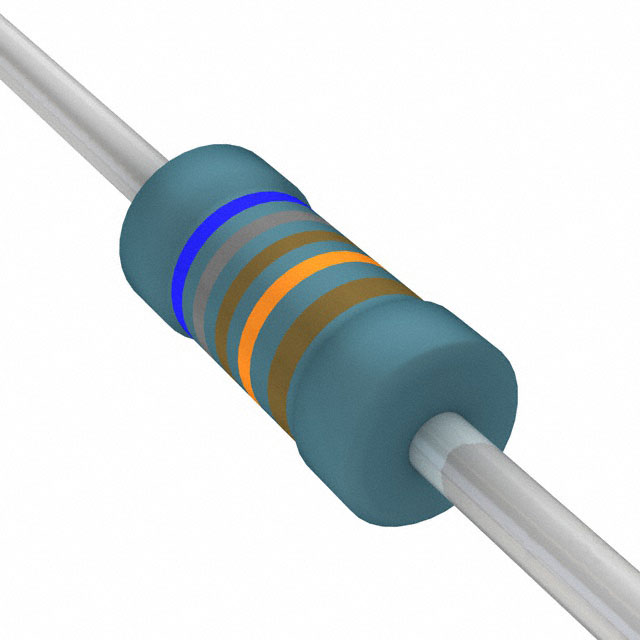

Vishay Dale VR25000006813FA500	Axial	681 kOhm	2	Automotive AEC-Q200 High Voltage Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	1 %
Vishay Dale VR25000003303JA500	Axial	330 kOhm	2	Automotive AEC-Q200 Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	5 %
Vishay Dale VR25000001204JA100	Axial	1.2 MOhm	2	Automotive AEC-Q200 Pulse Withstanding	0.256 in	0.098 in	250 mW	1/4W	155 °C	-55 °C	Axial	Metal Film	200 ppm/°C	5 %
