D2-4V-MINI Series

Catalog

SENSOR 1.08PSID 0.08" 4.25V

Part	Applications	Port Diameter	Port Feature	Port Gender	Pressure Type	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Operating Pressure	Accuracy	Output Type	Termination Style	Features	Output Voltage (Min)	Output Voltage (Max)	Mounting Type	Maximum Pressure	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Port Style

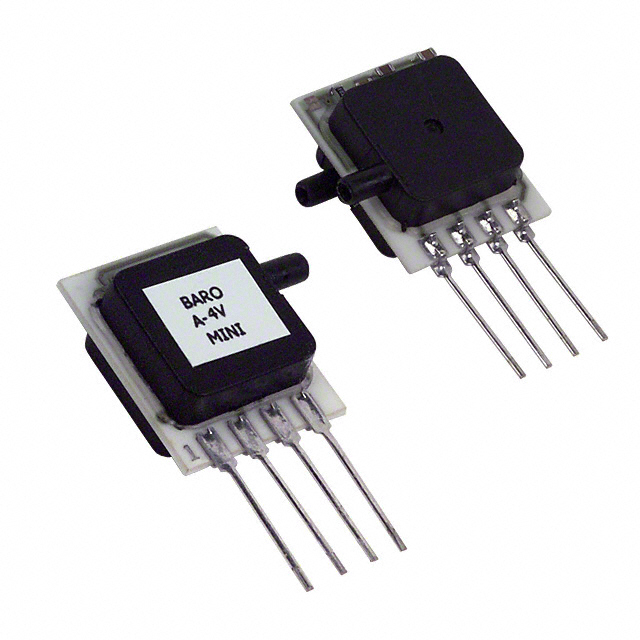

McGill Microwave Systems 30 INCH-D2-4V-MINI	Board Mount	0.08 in	Dual Tube	Male	Differential	4-SIP Module	85 °C	-25 °C	1.08 PSI	0.25 %	Analog Voltage	PC Pin	Amplified Output Temperature Compensated	0.25 V	4.25 V	Through Hole	18.07 PSI	5.5 V	4.5 V	Barbless
McGill Microwave Systems 20 INCH-D2-4V-MINI	Board Mount	0.08 in	Dual Tube	Male	Differential	4-SIP Module	85 °C	-25 °C	0.72 PSI	0.25 %	Analog Voltage	PC Pin	Amplified Output Temperature Compensated	0.25 V	4.25 V	Through Hole	10.84 PSI	5.5 V	4.5 V	Barbless
McGill Microwave Systems 2 INCH-D2-4V-MINI	Board Mount				Differential	4-SIP Module	85 °C	-25 °C	0.07 PSI			PC Pin	Temperature Compensated			Through Hole		5.5 V	4.5 V
McGill Microwave Systems 5 INCH-D2-4V-MINI	Board Mount	0.08 in	Dual Tube	Male	Differential	4-SIP Module	85 °C	-25 °C	0.18 PSI	0.25 %	Analog Voltage	PC Pin	Amplified Output Temperature Compensated	0.25 V	4.25 V	Through Hole	7.23 PSI	5.5 V	4.5 V	Barbless
McGill Microwave Systems 10 INCH-D2-4V-MINI	Board Mount	0.08 in	Dual Tube	Male	Differential	4-SIP Module	85 °C	-25 °C	0.36 PSI	0.25 %	Analog Voltage	PC Pin	Amplified Output Temperature Compensated	0.25 V	4.25 V	Through Hole	7.23 PSI	5.5 V	4.5 V	Barbless
