53126 Series

Catalog

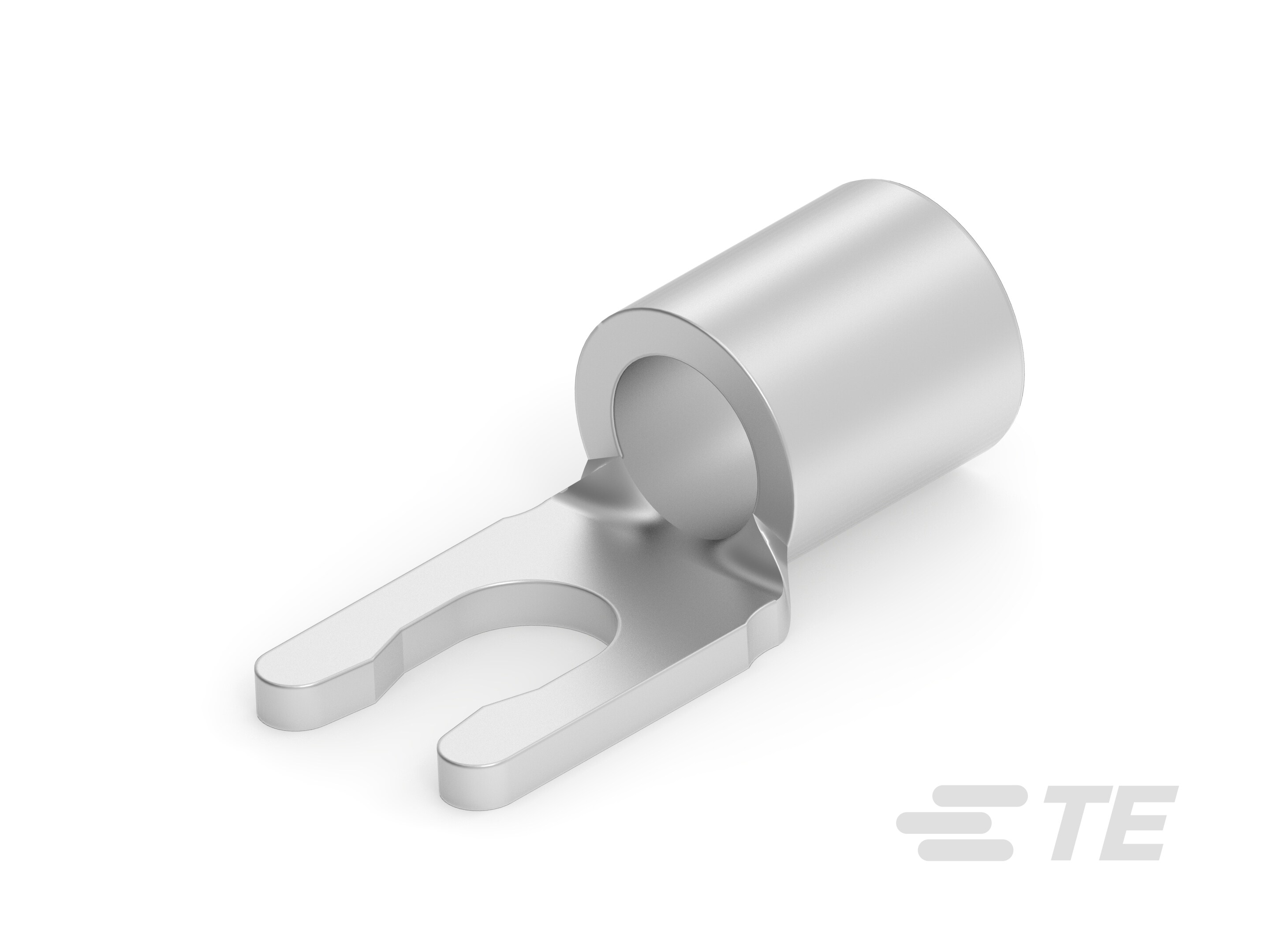

TERMINAL,SOLIS SPR SPD 12-10 6

Part	Width - Outer Edges	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Mounting Type	Terminal Type	Insulation	Termination	Contact Finish	Stud/Tab Size	Length - Overall	Contact Material	Features	Length - Ring Center to Termination	Length - Termination	Tongue Inside Opening
TE Connectivity AMP Connectors 53126-2	0.25 in	12 AWG	10 AWG	Free Hanging (In-Line)	Snap Spring	Non-Insulated	Crimp	Tin	6 Stud	0.636 in	Phosphor Bronze	Brazed Seam Serrated Termination	0.174 in	0.278 in	0.112 in
TE Connectivity AMP Connectors 53126-1	0.25 in	12 AWG	10 AWG	Free Hanging (In-Line)	Snap Spring	Non-Insulated	Crimp	Tin	6 Stud	0.636 in	Phosphor Bronze	Brazed Seam Serrated Termination	0.174 in	0.278 in	0.14 in
