RCA-HP e3 Series
Manufacturer: Vishay Dale
Beta
⌘K
THICK FILM RESISTORS - SMD RCA1210-HP 100 1K0 1% ET1 E3
| Part | Ratings | Tolerance | Operating Temperature (Max) | Operating Temperature (Min) | Size / Dimension Width | Size / Dimension Length | Number of Terminations | Features | Package Name | Height - Seated (Max) | Resistance | Power (Watts) | Power (Watts) Options | Temperature Coefficient | Composition | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

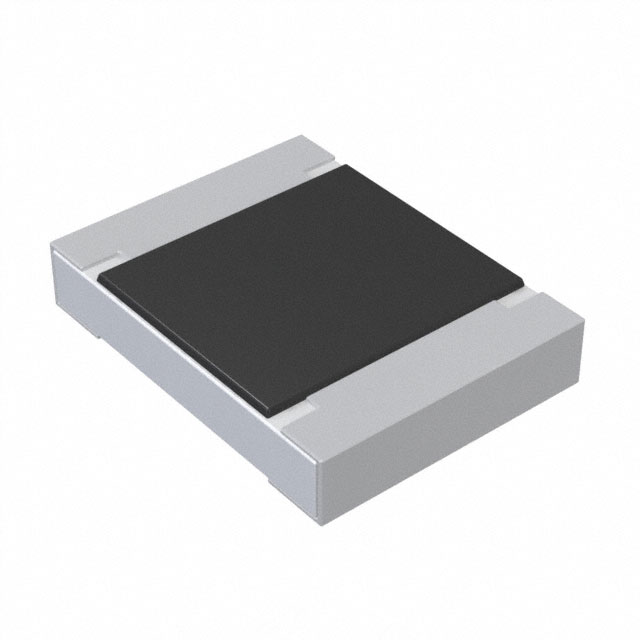

 Vishay Dale | AEC-Q200 | 1 % | 155 °C | -55 °C | 0.098 in | 0.126 in | 2 | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 1210 | 0.028 in | 1 kOhm | 750 mW | 3/4W | 100 ppm/°C | Thick Film | 1210 (3225 Metric) |

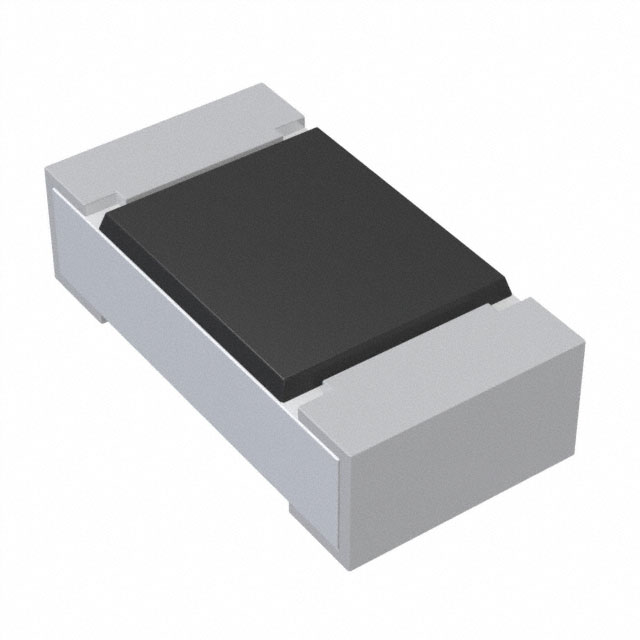

 Vishay Dale | AEC-Q200 | 1 % | 155 °C | -55 °C | 0.033 in | 0.063 in | 2 | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 0603 | 0.022 in | 1 kOhm | 0.333 W | 1/3W | 100 ppm/°C | Thick Film | 0603 (1608 Metric) |
