MS3100A14 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
RECEPT
| Part | Shell Size - Insert | Mounting Feature | Connector Type | Orientation | Mounting Type | Shell Finish | Qualification | Primary Material | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish - Mating | Number of Positions | Shell Material | Grade | Termination | Shielding | Fastening Type | Color | Applications | Features | Insert Material | Backshell Material | Plating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | 14S-9 | Flange | Female Sockets Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-DTL-5015 | Metal | 125 °C | -55 °C | Silver | 2 | Aluminum Alloy | Military | Solder Cup | Unshielded | Threaded | Olive Drab | ||||||
 Amphenol Aerospace Operations | 14S-1 | Flange | Female Sockets Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-5015 | Metal | 125 °C | -55 °C | Silver | 3 | Aluminum Alloy | Solder Cup | Unshielded | Threaded | Olive Drab | Marine Military | Backshell | Neoprene | Aluminum Alloy | Olive Drab Chromate over Cadmium | Copper Alloy | |
Amphenol Aerospace Operations | 14S-2 | Flange | Female Sockets Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-5015 MIL-DTL-5015 | Metal | 125 °C | -55 °C | Silver | 4 | Aluminum Alloy | Military | Solder Cup | Unshielded | Threaded | Olive Drab | Marine Military | Backshell | Neoprene | Aluminum Alloy | Olive Drab Chromate over Cadmium | Copper Alloy |
Amphenol Aerospace Operations | 14S-6 | Flange | Female Sockets Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-DTL-5015 | Metal | 125 °C | -55 °C | Silver | 6 | Aluminum Alloy | Military | Solder Cup | Unshielded | Threaded | Olive Drab | ||||||
Amphenol Aerospace Operations | 14S-7 | Flange | Male Pins Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-DTL-5015 | Metal | 125 °C | -55 °C | Silver | 3 | Aluminum Alloy | Military | Solder Cup | Unshielded | Threaded | Olive Drab | ||||||
Amphenol Aerospace Operations | ||||||||||||||||||||||||
Amphenol Aerospace Operations | 14S-9 | Flange | Female Sockets Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-DTL-5015 | Metal | 125 °C | -55 °C | Silver | 2 | Aluminum Alloy | Military | Solder Cup | Unshielded | Threaded | Olive Drab | ||||||

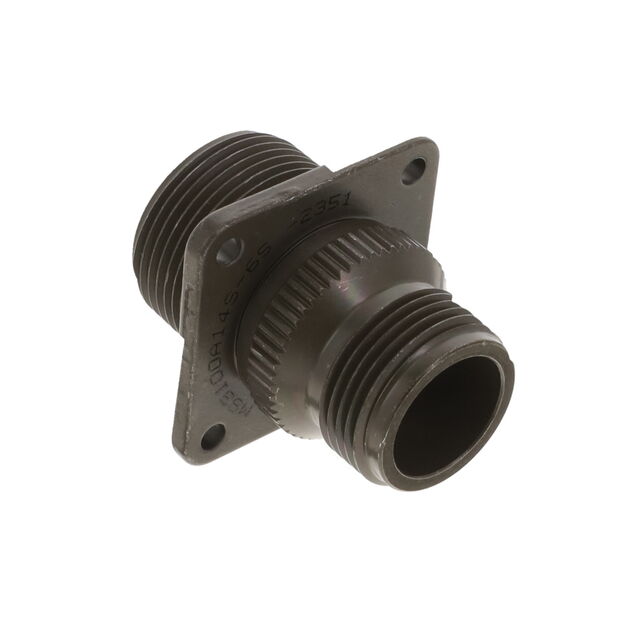

 Amphenol Aerospace Operations | 14S-6 | Flange | Female Sockets Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-DTL-5015 | Metal | 125 °C | -55 °C | Silver | 6 | Aluminum Alloy | Solder Cup | Unshielded | Threaded | Olive Drab | Marine Military | Backshell | Neoprene | Aluminum Alloy | Olive Drab Chromate over Cadmium | Copper Alloy | |
Amphenol Aerospace Operations | 14S-12 | Flange | Female Sockets Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-DTL-5015 | Metal | 125 °C | -55 °C | Silver | 3 | Aluminum Alloy | Military | Solder Cup | Unshielded | Threaded | Olive Drab | ||||||
Amphenol Aerospace Operations | 14S-7 | Flange | Female Sockets Receptacle | N (Normal) | Panel Mount | Cadmium Olive Drab Chromate | MIL-DTL-5015 | Metal | 125 °C | -55 °C | Silver | 3 | Aluminum Alloy | Military | Solder Cup | Unshielded | Threaded | Olive Drab |
