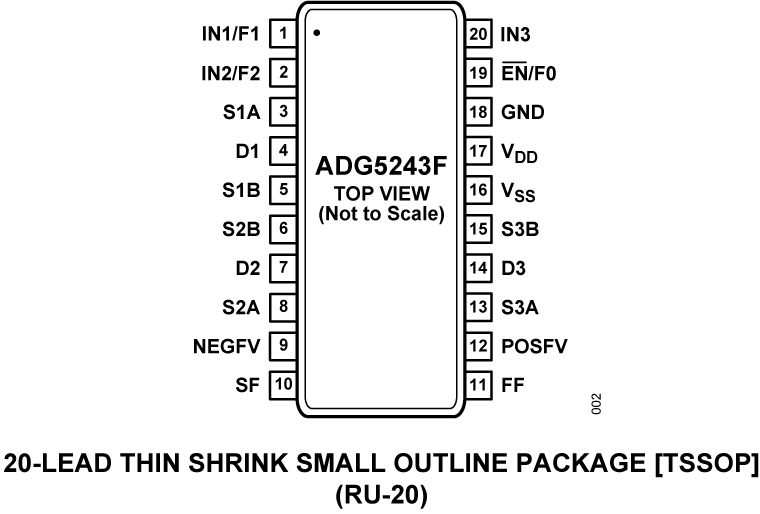

ADG5243 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
USER DEFINED FAULT PROTECTION AND DETECTION, 0.8 PC QINJ, TRIPLE SPDT
| Part | Switch Circuit Type | Crosstalk | Voltage - Supply, Dual (Minimum) | Voltage - Supply, Dual (Maximum) | Voltage - Supply, Dual (Nominal) | Charge Injection | Package Length | Package Name | Package Width | Switch Time Ton (Max) | Switch Time Toff (Max) | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply, Single (V+) (Maximum) | Voltage - Supply, Single (V+) (Minimum) | Current - Leakage (Max) | Number of Circuits | Mounting Type | Multiplexer Inputs | Demultiplexer Outputs | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | -3db Bandwidth | Supplied Contents | Function | Utilized IC / Part | Contents | Type | Primary Attributes | Count | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | SPDT | -85 dB | -5 V | 22 V | 5 V | -1.4 pC | 4 mm | 20-LFCSP | 4 mm | 215 ns | 85 ns | 20-WFQFN Exposed Pad CSP | 125 °C | -40 °C | 44 V | 8 V | 1 nA | 3 | Surface Mount | 2 | 1 | 335 Ohm | 3 Ohm | 350 MHz | ||||||||
 Analog Devices Inc./Maxim Integrated | Board(s) | Analog Switch | ADG5243F | Board | Interface | 3 x SPDT Analog Switch SPDT Analog Switch | 3 | On-Board LEDs |
