T 3476 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

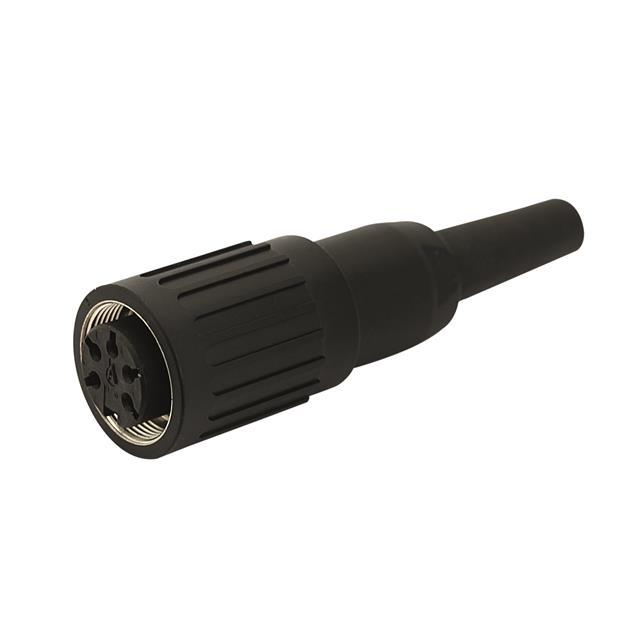

FEMALE CABLE CONNECTOR WITH INTE
| Part | Connector Type | Operating Temperature (Max) | Operating Temperature (Min) | Orientation | Shell Size - Insert | Ingress Protection | Primary Material | Cable Opening (Min) | Cable Opening (Max) | Insert Material | Mounting Type | Voltage Rating | Termination | Color | Material Flammability Rating | Shielding | Shell Material | Shell Finish | Contact Finish - Mating | Fastening Type | Applications | Number of Positions | Current Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Female Sockets Plug | 100 °C | -40 °C | Keyed | M16-7 | IP40 | Metal | 0.157 in | 0.236 in | Thermoplastic | Free Hanging (In-Line) | 250 V | Solder Cup | Black | UL94 V-0 | Shielded | Zinc Die Cast | Nickel | Gold | Threaded | Industrial Instrumentation Marine Medical Testing Equipment & Measurement | 7 | 7 A | Backshell Cable Clamp Coupling Nut Strain Relief |
