53835 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

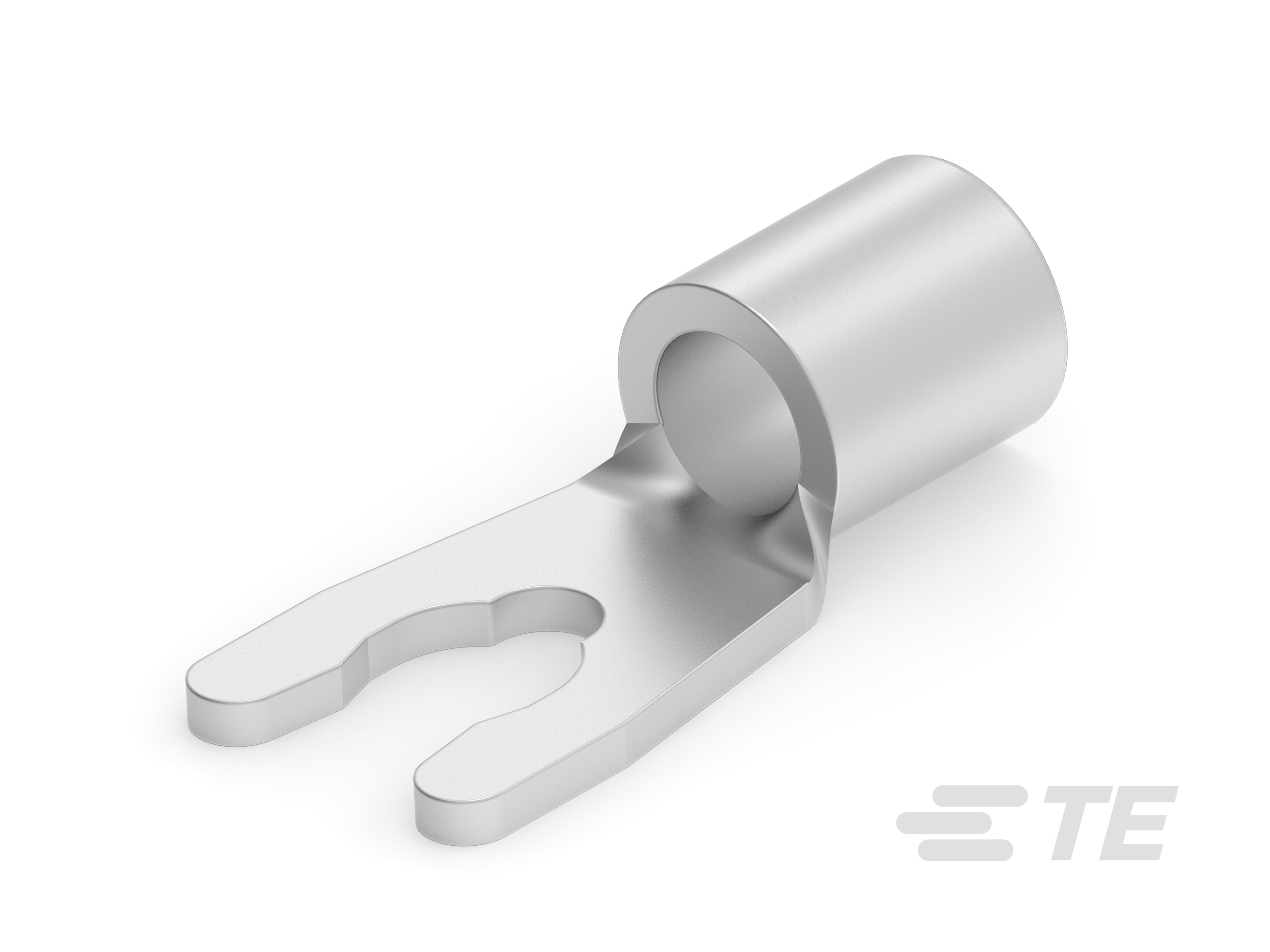

TERMINAL,SOLIS SPR SPD 12-10 8 ROHS COMPLIANT: YES
| Part | Width - Outer Edges | Termination | Terminal Type | Stud/Tab Size | Contact Material | Length - Overall | Features | Mounting Type | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Insulation | Contact Finish | Length - Termination | Tongue Inside Opening | Length - Ring Center to Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.312 in | Crimp | Snap Spring | 8 Stud | Phosphor Bronze | 0.729 in | Brazed Seam Serrated Termination | Free Hanging (In-Line) | 12 AWG | 10 AWG | Non-Insulated | Tin | 0.278 in | 0.164 in | 0.276 in |
