2010 Series

Catalog

CBL RIBN 34COND 0.05 WHITE 50'

Part	Ribbon Thickness	Cable Type	Features	Length	Pitch	Wire Gauge	Jacket (Insulation) Material	Shielding	Conductor Strand Count	Conductor Strand Gauge	Operating Temperature (Min)	Operating Temperature (Max)	Voltage	Ratings	Jacket Color	Number of Conductors	Ribbon Width	Conductor Material	Insulation Resistance	First Conductor Mark

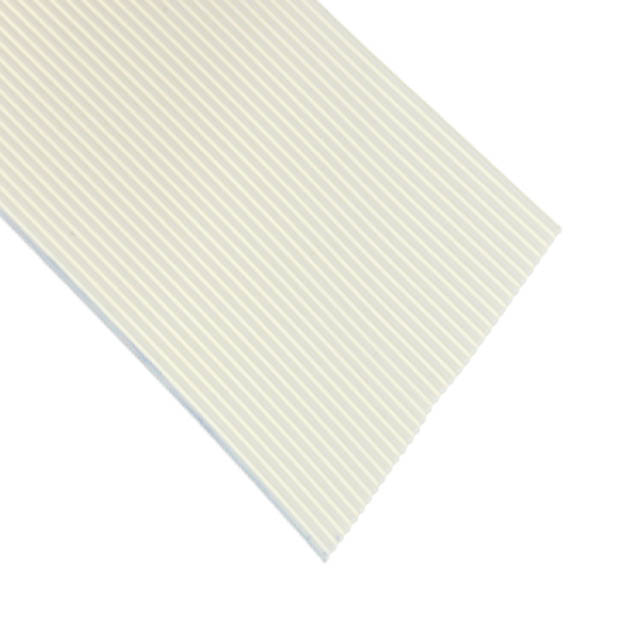

3M Electronic Specialty 2010/34 100SF	0.035 in	Flat Cable	Splice Free Zippable	5 ft 10 ft 25 ft 50 ft 100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	34	1.7 in	Copper Tinned	10 GOhm	Blue
3M Electronic Specialty 2010/09 100SF	0.035 in	Flat Cable	Splice Free Zippable	25 ft 50 ft 100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	9	0.45 in	Copper Tinned	10 GOhm	Blue

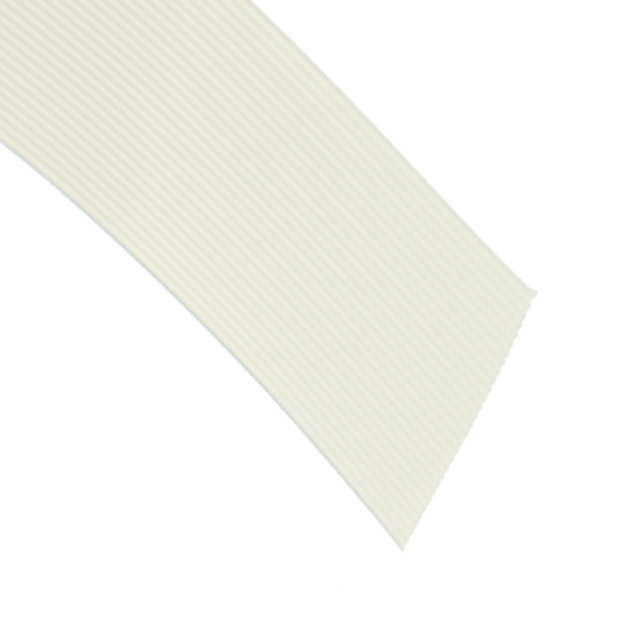

3M Electronic Specialty 2010/30 100SF	0.035 in	Flat Cable	Splice Free Zippable	5 ft 25 ft 100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	30	1.5 in	Copper Tinned	10 GOhm	Blue
3M Electronic Specialty 2010/16 100SF	0.035 in	Flat Cable	Splice Free Zippable	5 ft 10 ft 25 ft 50 ft 100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	16	0.8 in	Copper Tinned	10 GOhm	Blue

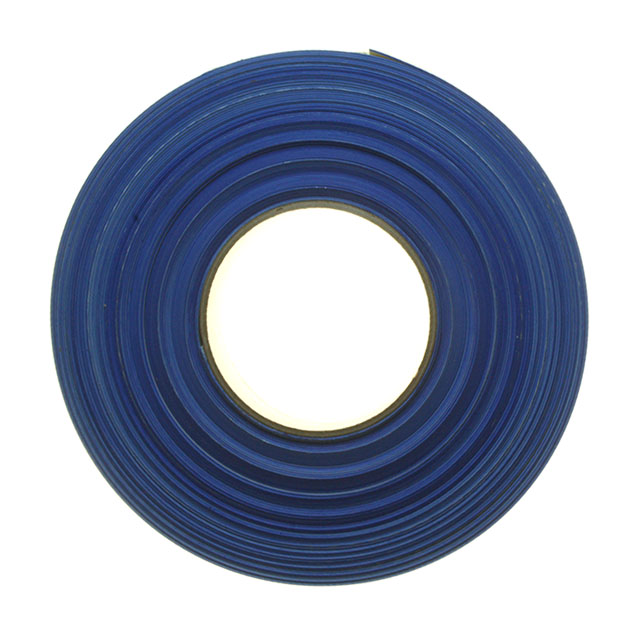

3M Electronic Specialty 2010/37 100SF	0.035 in	Flat Cable	Splice Free Zippable	10 ft 25 ft 50 ft 100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	37	1.85 in	Copper Tinned	10 GOhm	Blue
3M Electronic Specialty 2010/20 100	0.035 in	Flat Cable	Zippable	100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	20	1 in	Copper Tinned	10 GOhm	Blue
3M Electronic Specialty 2010/26 100	0.035 in	Flat Cable	Zippable	100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	26	1.3 in	Copper Tinned	10 GOhm	Blue
3M Electronic Specialty 2010/40 100SF	0.035 in	Flat Cable	Splice Free Zippable	5 ft 25 ft 100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	40	2 in	Copper Tinned	10 GOhm	Blue
3M Electronic Specialty 2010/60 100SF	0.035 in	Flat Cable	Splice Free Zippable	5 ft 10 ft 25 ft 100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	60	3 in	Copper Tinned	10 GOhm	Blue
3M Electronic Specialty 2010/15 100SF	0.035 in	Flat Cable	Splice Free Zippable	25 ft 50 ft 100 ft	0.05 in	28 AWG	Polyolefin (PO)	Unshielded	7 Strands	36 AWG	-20 °C	105 °C	30 V	20930 Style UL	White	15	0.75 in	Copper Tinned	10 GOhm	Blue
