2383941 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

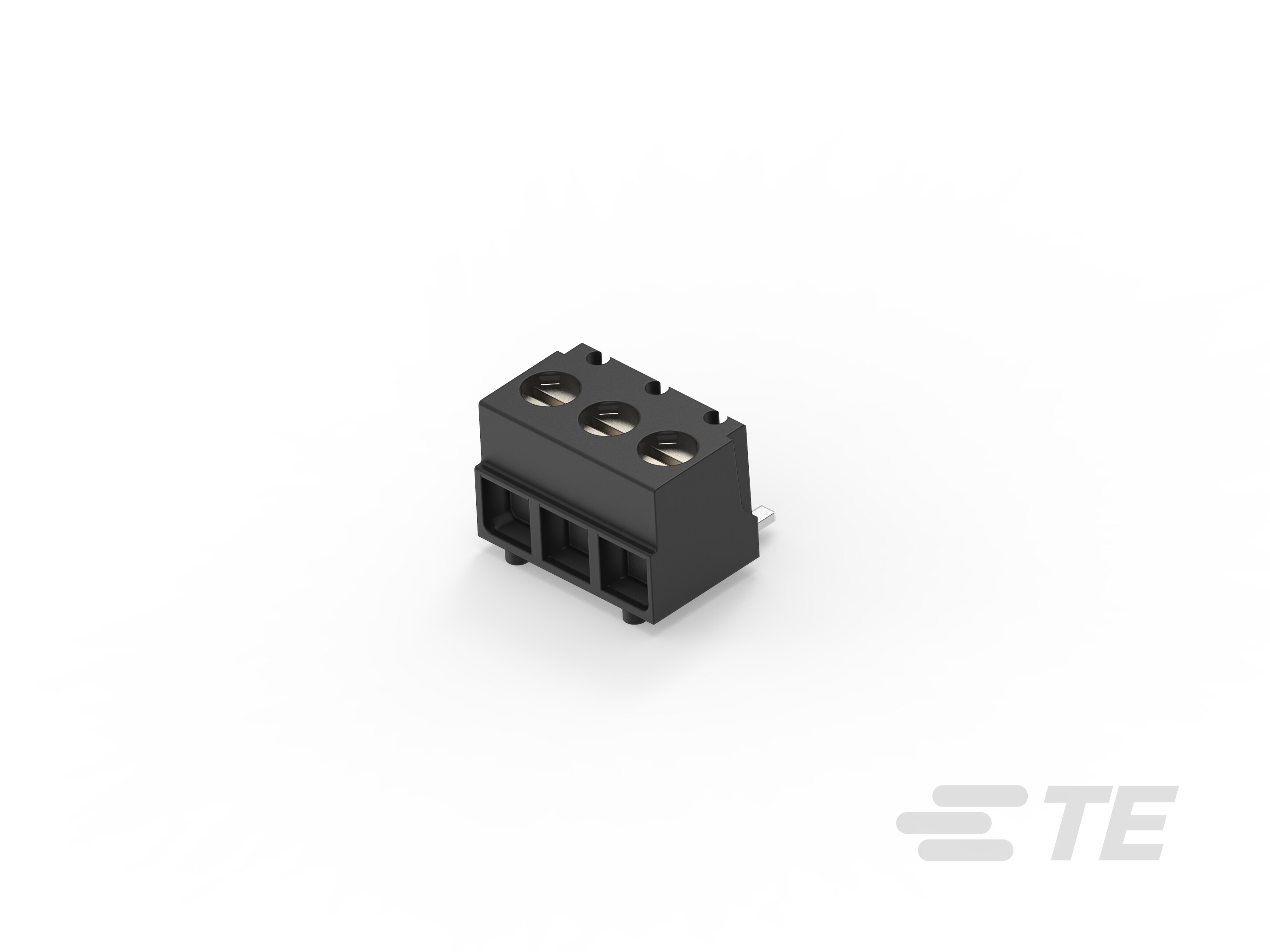

TERMI-BLOK SMD MOUNT 180_3P_3.81 MM 7A
| Part | Color | Voltage | Mating Orientation | Mounting Type | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Current | Features | Wire Termination | Positions Per Level | Number of Levels | Pitch | Housing Material | Contact Material | Plating | Clamp Material | Clamp Plating | Operating Temperature (Min) | Operating Temperature (Max) | Torque - Screw (Maximum) | Torque - Screw (Minimum) | Screw Plating | Screw Material | Screw Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | 300 V | Horizontal with Board | Surface Mount | 18 AWG | 28 AWG | 7 A | Board Guide | Rising Cage Clamp Screw | 3 | 1 | 0.15 in | Nylon PA Polyamide | Copper Alloy | Nickel Tin Plated | Copper Alloy | Nickel Plated | -40 °C | 105 °C | 0.6 Nm | 0.5 Nm | Nickel Plated | Copper Alloy | M2 |
