747832 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

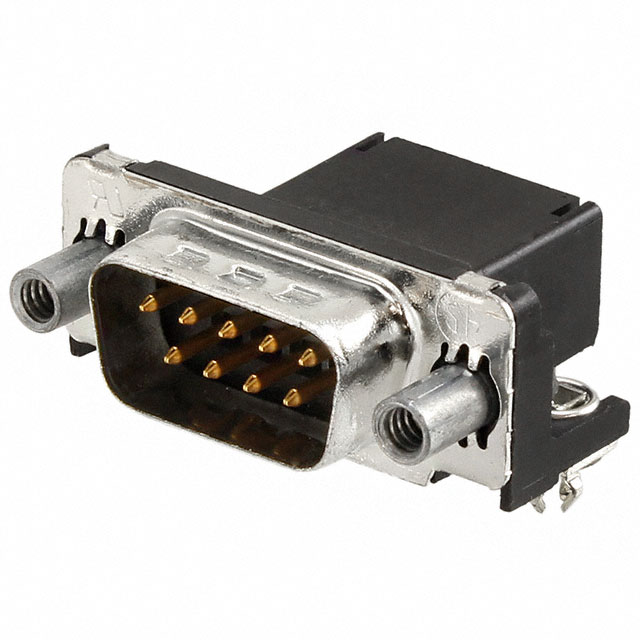

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Connector Type | Contact Material | Mounting Type | Features | Number of Rows | Backset Spacing | Backset Spacing | Contact Type | Connector Style | Color | Current Rating (Amps) | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Number of Positions | Contact Finish | Flange Feature | Contact Finish Thickness | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Male Pins Plug | Brass | Through Hole Right Angle | Board Lock Ground Strap Grounding Indents | 2 | 0.59 " | 14.99 mm | Signal | D-Sub | Black | 6 A | 125 VDC | 105 ░C | -55 °C | UL94 V-0 | 9 | Gold | Housing/Shell (4-40) | Flash | Solder | DE E | 1 |
 TE Connectivity Raychem Cable Protection | Male Pins Plug | Brass | Through Hole Right Angle | Board Lock Ground Strap Grounding Indents | 2 | 0.59 " | 14.99 mm | Signal | D-Sub | Black | 6 A | 125 VDC | 105 ░C | -55 °C | UL94 V-0 | 9 | Gold | Female Screwlock (4-40) Mating Side | Solder | DE E | 1 |
