Q-0305G0 Series

Catalog

CBL ASSY BNC-HDBNC JACK-PLG 8.2'

Part	Length (ft)	Length	1st Contact Gender	Overall Impedance	2nd Contact Gender	Features	Style	1st Connector	Cable Type	Frequency - Max	Color	2nd Connector	1st Connector Mounting Type	2nd Connector Mounting Type
McGill Microwave Systems Q-0305G00052.5M	8.2 ft	98.4 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	316 RG	4 GHz	Copper	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
McGill Microwave Systems Q-0305G00051.5M	4.9 ft	59.1 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	316 RG	4 GHz	Copper	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
McGill Microwave Systems Q-0305G0005001M		39.4 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	316 RG	4 GHz	Copper	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
McGill Microwave Systems Q-0305G00050.5M		19.69 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	316 RG	4 GHz	Copper	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)

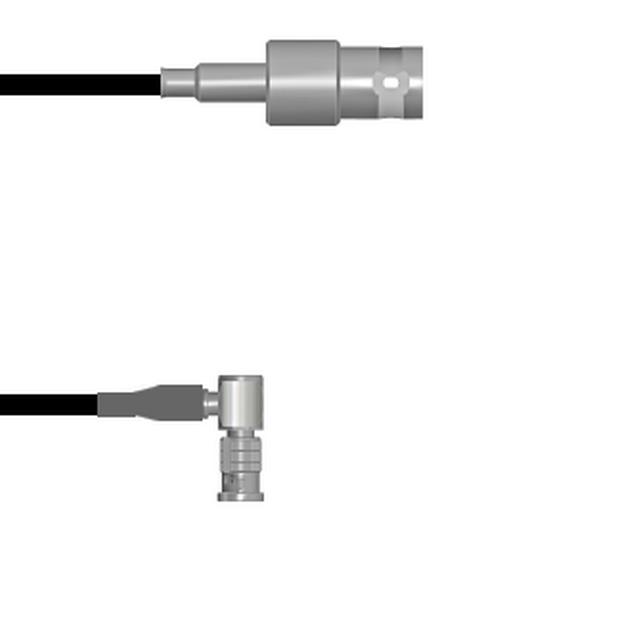

McGill Microwave Systems Q-0305G0003009i		228.6 mm	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	174 RG	4 GHz	Black	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
McGill Microwave Systems Q-0305G0003003M		118.1 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	174 RG	4 GHz	Black	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
McGill Microwave Systems Q-0305G0005003M		118.1 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	316 RG	4 GHz	Copper	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
McGill Microwave Systems Q-0305G0005012i		12 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	316 RG	4 GHz	Copper	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
McGill Microwave Systems Q-0305G0003072i		72 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	174 RG	4 GHz	Black	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
McGill Microwave Systems Q-0305G0005.75M		29.53 in	Female	50 Ohms	Male	Shielded	BNC HD-BNC	BNC Jack	316 RG	4 GHz	Copper	HD-BNC Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)
