336303 Series

Catalog

RF / COAXIAL CABLE ASSEMBLY, 90° AMC PLUG TO SMA BULKHEAD JACK, 1.13MM, 50 OHM, 1.97 ", 50 MM

Part	Color	1st Connector Mounting Type	1st Connector Mounting Feature	1st Connector	2nd Contact Gender	Frequency - Max	Overall Impedance	1st Contact Gender	Cable Type Size	Cable Type	Cable Outer Diameter	2nd Connector Mounting Type	2nd Connector	Style	Length

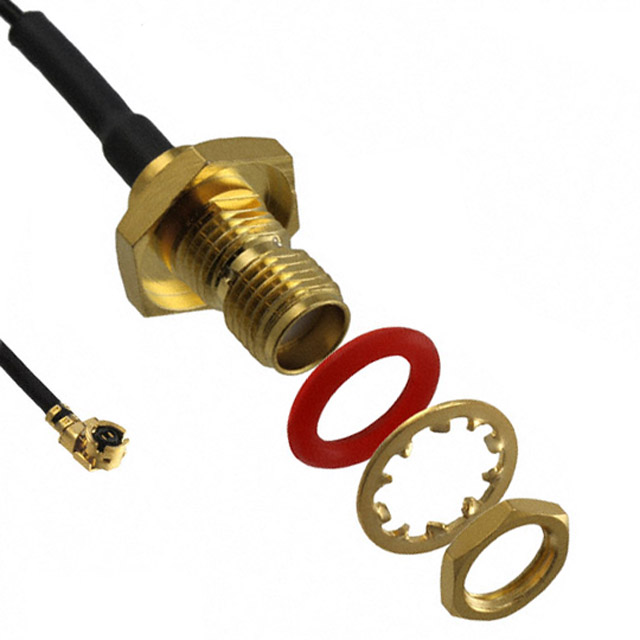

McGill Microwave Systems 336303-12-0050	Black	Panel Mount	Bulkhead Front Side Nut	SMA Jack	Female	6000 MHz	50 Ohms	Female	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	AMC to SMA U.FL (UMCC)	1.969 in

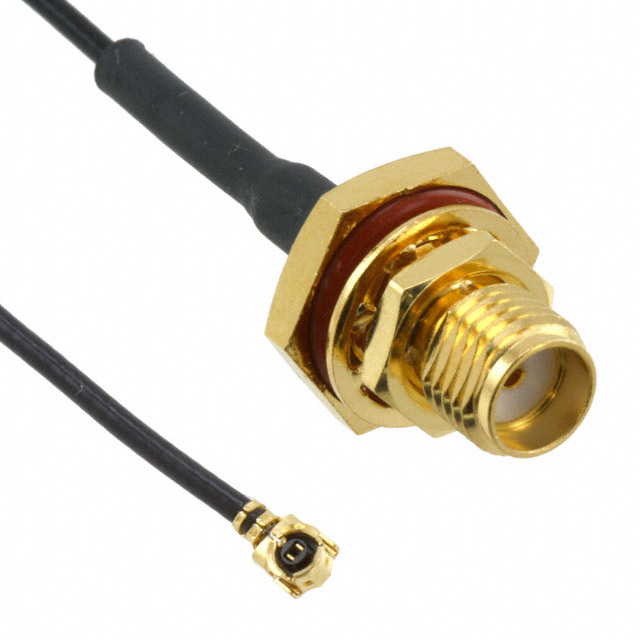

McGill Microwave Systems 336303-13-0200	Black	Panel Mount	Bulkhead Front Side Nut	SMA Jack	Female	6000 MHz	50 Ohms	Female	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	AMC to SMA U.FL (UMCC)	7.874 in
McGill Microwave Systems 336303-13-0300	Black	Panel Mount	Bulkhead Front Side Nut	SMA Jack	Female	6000 MHz	50 Ohms	Female	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	AMC to SMA U.FL (UMCC)	11.811 in
McGill Microwave Systems 336303-12-0100	Black	Panel Mount	Bulkhead Front Side Nut	SMA Jack	Female	6000 MHz	50 Ohms	Female	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	AMC to SMA U.FL (UMCC)	3.937 in
McGill Microwave Systems 336303-13-0050	Black	Panel Mount	Bulkhead Front Side Nut	SMA Jack	Female	6000 MHz	50 Ohms	Female	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	AMC to SMA U.FL (UMCC)	1.969 in
