AHDM Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CIRCULAR CONNECTOR, DURAMATE AHDM SERIES, PANEL MOUNT RECEPTACLE, 21 CONTACTS
| Part | Shell Finish | Connector Type | Contact Size | Ingress Protection IP Rating | Ingress Protection Description | Mounting Feature | Shielding | Number of Positions | Contact Type | Orientation | Fastening Type | Type | Mounting Type | Shell Material | Housing Color | Shell Size - Insert Length | Shell Size - Insert Width | Color | Material | Accessory Type | Features | For Use With/Related Products | Shell Size - Insert | Shell Size - Insert | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Nickel | Receptacle Housing | 12 16 | IP67 IP69K | Dust Tight Water Resistant Waterproof | Bulkhead Front Side Nut | Unshielded | 21 | Crimp | Keyed | Bayonet Lock | For Male Pins | Panel Mount | Zinc Alloy | Silver | 24 mm | 21 mm | ||||||||||
 McGill Microwave Systems | Nickel | Receptacle Housing | 4 8 12 | IP67 IP69K | Dust Tight Water Resistant Waterproof | Bulkhead Front Side Nut | Unshielded | 9 | Crimp | Keyed | Bayonet Lock | For Female Sockets | Panel Mount | Zinc Alloy | Silver | 24 mm | 9 mm | ||||||||||
 McGill Microwave Systems | Silver | Stainless Steel | Lockwasher | Flat | AHDM Series Receptacle | 18 | 18 | ||||||||||||||||||||

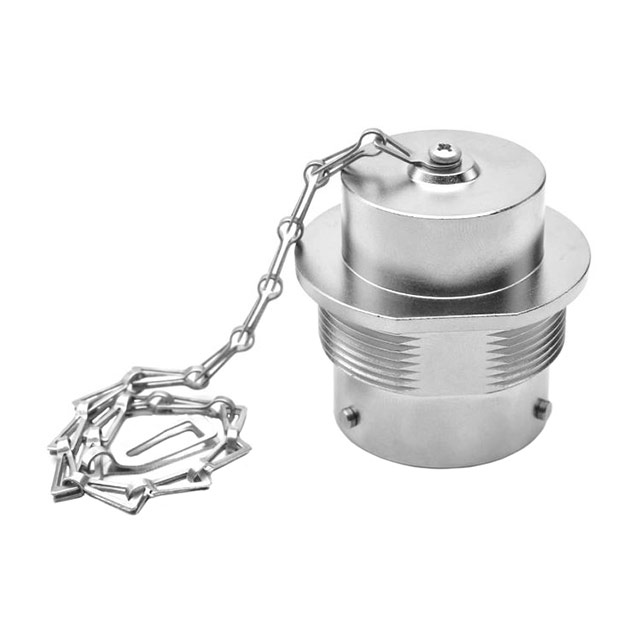

 McGill Microwave Systems | Silver | Aluminum Alloy Nickel Plated | Cap (Cover) Protective | Dust Tight Metal Chain Waterproof | AHDM Series Plug | 18 | 18 | ||||||||||||||||||||
 McGill Microwave Systems | Nickel | Plug Housing | 4 8 12 | IP67 IP69K | Dust Tight Water Resistant Waterproof | Unshielded | 9 | Crimp | Keyed | Bayonet Lock | For Female Sockets | Free Hanging (In-Line) | Zinc Alloy | Silver | 24 mm | 9 mm | Coupling Nut | ||||||||||
McGill Microwave Systems | Nickel | Plug Housing | 20 | IP68 IP69K | Dust Tight Water Resistant Waterproof | Unshielded | 33 | Crimp | Keyed | Bayonet Lock | For Male Pins | Free Hanging (In-Line) | Zinc Alloy | Silver | Coupling Nut | 33 | 24 | Metal | |||||||||
 McGill Microwave Systems | Nickel | Plug Housing | 12 16 | IP67 IP69K | Dust Tight Water Resistant Waterproof | Unshielded | 21 | Crimp | Keyed | Bayonet Lock | For Male Pins | Free Hanging (In-Line) | Zinc Alloy | Silver | 24 mm | 21 mm | Coupling Nut |
