RT06142 Series

Catalog

PLUG, 4 (2+2) POSITION, FEMALE,

Part	Connector Type	Type	Shell Finish	Shell Size - Insert Length	Shell Size - Insert Width	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Features	Contact Type	Shell Material	Mounting Type	Note	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Housing Color	Shielding	Contact Shape	Orientation	Contact Size	Material Flammability Rating	Insert Material	Number of Positions	Includes	Includes Total Count
McGill Microwave Systems RT06142SNHEC03	Plug Housing	For Female Sockets	Nickel	14 mm	2 mm	Dust Tight Waterproof	IP67	Metal	Coupling Nut	Crimp	Zinc Alloy	Free Hanging (In-Line)	Contacts Not Included	125 °C	-40 °C	Bayonet Lock	Silver	Shielded	Circular	N (Normal)	2.5 mm 16	UL94 V-0	Thermoplastic	4
McGill Microwave Systems RT06142PNHEC03	Plug Housing	For Male Pins	Nickel	14 mm	2 mm	Dust Tight Waterproof	IP67	Metal	Coupling Nut	Crimp	Zinc Alloy	Free Hanging (In-Line)	Contacts Not Included	125 °C	-40 °C	Bayonet Lock	Silver	Shielded	Circular	N (Normal)	2.5 mm 16	UL94 V-0	Thermoplastic	4
McGill Microwave Systems RT06142PNHEC	Plug Housing	For Male Pins	Nickel	14 mm	2 mm	Dust Tight Waterproof	IP67		Backshell Coupling Nut	Crimp	Zinc Alloy	Free Hanging (In-Line)	Contacts Not Included	105 °C	-40 °C	Bayonet Lock	Silver	Shielded	Circular	N (Normal)	2.5 mm 16	UL94 V-0	Thermoplastic	4

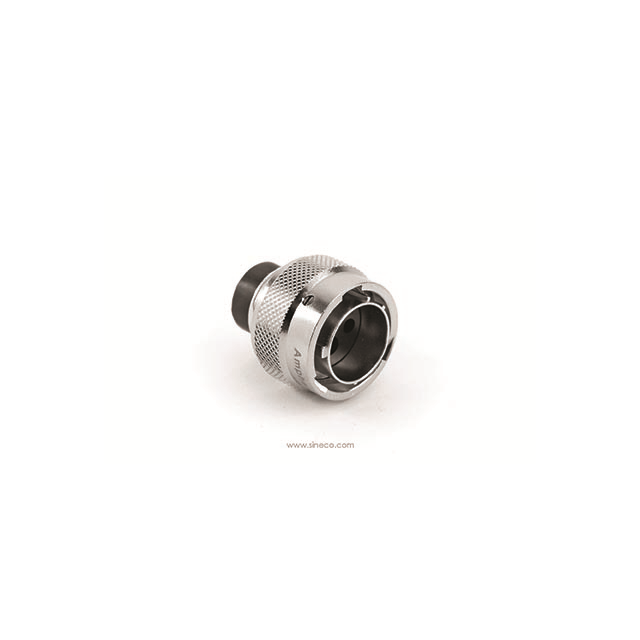

McGill Microwave Systems RT06142PNH03	Plug Housing	For Male Pins	Nickel	14 mm	2 mm	Dust Tight Waterproof	IP67		Coupling Nut	Crimp	Zinc Alloy	Free Hanging (In-Line)	Contacts Not Included	125 °C	-40 °C	Bayonet Lock	Silver	Shielded	Circular	N (Normal)	2.5 mm 16	UL94 V-0	Thermoplastic	4	Connector Gasket O-Ring	3 pcs
