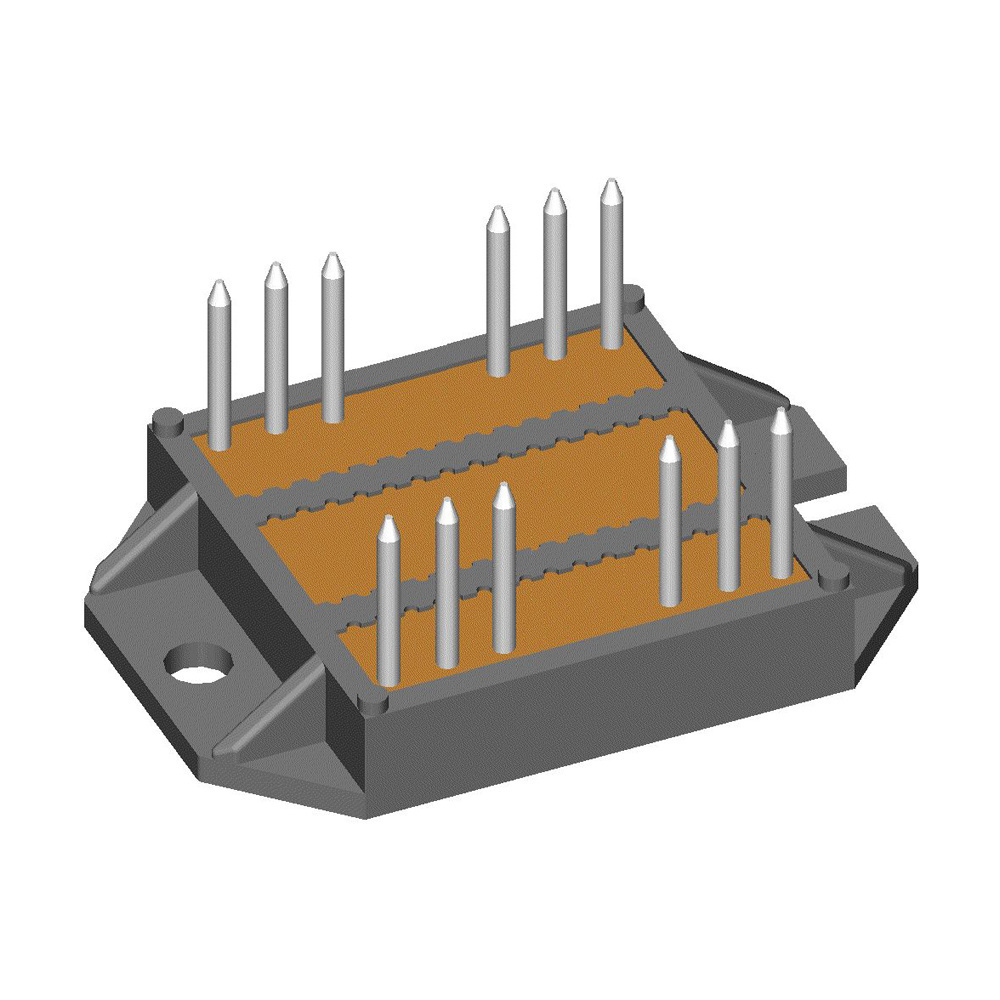

Bipolar Module - Diode ECO-PAC2
Description
AI
The Fast Dual Diode series offers various packages and breakdown voltages up to 1200V. Utilizing FRED dies enables fast reverse recovery capabilities.
Beta
⌘K
Bipolar Module - Diode ECO-PAC2
Bipolar Module - Diode ECO-PAC2
| Part | Package / Case | Package Name | Voltage - DC Reverse (Vr) (Max) | Technology | Reverse Recovery Time (trr) | Voltage - Forward (Vf) (Max) | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Operating Temperature - Junction (Min) | Operating Temperature - Junction (Max) | Diode Count | Diode Configuration | Current - Reverse Leakage | Current - Average Rectified (Io) (per Diode) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | ECO-PAC2 | ECO-PAC2 | 1200 V | Standard | 40 ns | 1.9 V | 500 ns | 200 mA | -40 °C | 150 °C | 2 | Independent | 12 mA | 128 A | Chassis Mount |
