ELFH024 Series

Catalog

TERM BLOCK HDR 2POS VERT 7.62MM

Part	Number of Positions	Header Orientation	Operating Temperature	Voltage - UL	Positions Per Level	Type	Current - UL	Termination Style	Color	Number of Levels	Mounting Type	Pitch	Contact Mating Finish	Features	Contact Material	Housing Material	Material Flammability Rating	Contact Tail Length	Insulation Height

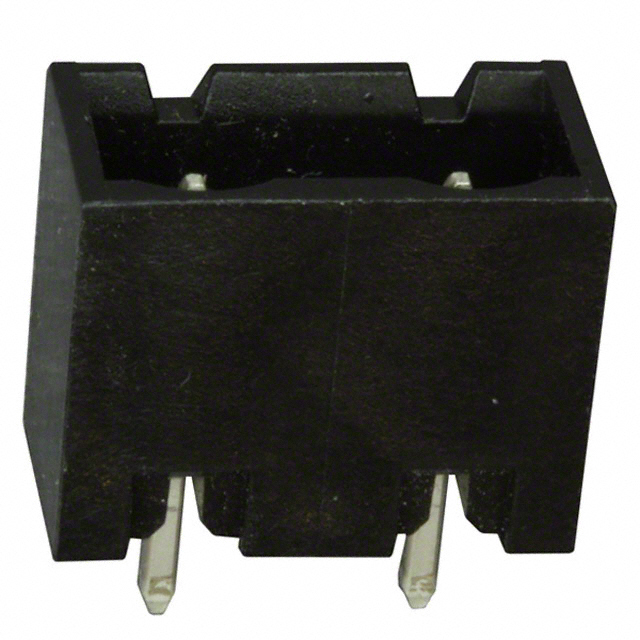

McGill Microwave Systems ELFH02450	2	Vertical	105 °C	300 V	2	Header Male Pins Shrouded (4 Side)	15 A	Solder	Black	1	Through Hole	0.3 in	Tin
McGill Microwave Systems ELFH02450E	2	Vertical	105 °C	300 V	2	Header Male Pins Shrouded (4 Side)	15 A	Solder	Black	1	Through Hole	0.3 in	Tin	Mating Flange
McGill Microwave Systems ELFH02450E	2	Vertical	105 °C	300 V	2	Header Male Pins Shrouded (4 Side)	15 A	Solder	Black	1	Through Hole	0.3 in	Tin	Mating Flange	Brass	PBT Polybutylene Terephthalate	UL94 V-0	0.155 in	0.475 in
McGill Microwave Systems ELFH02450	2	Vertical	105 °C	300 V	2	Header Male Pins Shrouded (4 Side)	15 A	Solder	Black	1	Through Hole	0.3 in	Tin		Brass		UL94 V-0
