Q-2K04R0 Series

Catalog

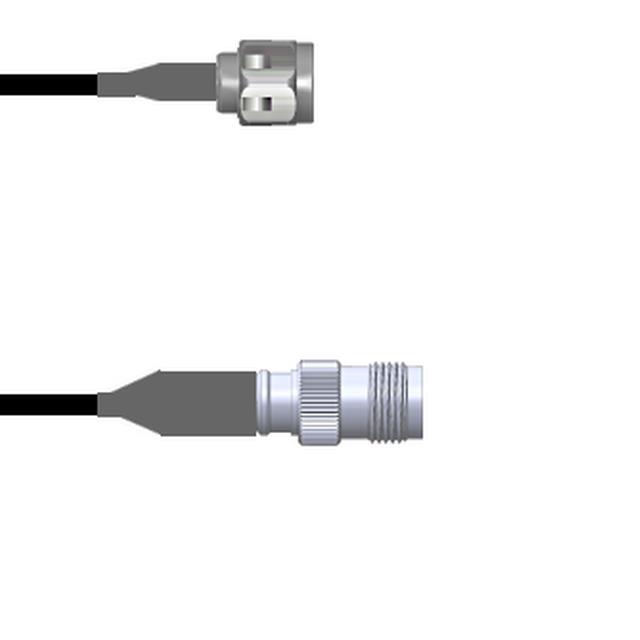

CBL ASSY NTYPE-TNC PLUG-JACK 18"

Part	1st Contact Gender	Style	Features	2nd Connector	Length	2nd Contact Gender	1st Connector	Color	Frequency - Max	1st Connector Mounting Type	Cable Type Size	Cable Type	Overall Impedance	2nd Connector Mounting Type	Length (ft)
McGill Microwave Systems Q-2K04R000M018i	Male	N-Type TNC	Shielded	TNC Jack	18 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems Q-2K04R000M012i	Male	N-Type TNC	Shielded	TNC Jack	12 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems Q-2K04R000M.75M	Male	N-Type TNC	Shielded	TNC Jack	29.53 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems Q-2K04R000M0.5M	Male	N-Type TNC	Shielded	TNC Jack	19.69 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems Q-2K04R000M1.5M	Male	N-Type TNC	Shielded	TNC Jack	59.1 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)	4.9 ft
McGill Microwave Systems Q-2K04R000M2.5M	Male	N-Type TNC	Shielded	TNC Jack	98.4 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)	8.2 ft
McGill Microwave Systems Q-2K04R000M048i	Male	N-Type TNC	Shielded	TNC Jack	48 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems Q-2K04R000M072i	Male	N-Type TNC	Shielded	TNC Jack	72 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems Q-2K04R000M003M	Male	N-Type TNC	Shielded	TNC Jack	118.1 in	Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems Q-2K04R000M002M	Male	N-Type TNC	Shielded	TNC Jack		Female	N-Type Plug	Black	6000 MHz	Free Hanging (In-Line)	240	LMR	50 Ohms	Free Hanging (In-Line)	6.6 ft
