M85049/51 Series

Catalog

CIRCULAR CONNECTOR CLAMP, RIGHT ANGLE, 24, 27.46 MM, ALUMINUM ALLOY, MIL-DTL-26482 SERIES 2

Part	Material	Shielding	Cable Opening (Min)	Cable Opening (Max)	Type	Color	Features	For Use With/Related Products	Diameter - Outside	Cable Exit Angle	Shell Size - Insert	Shell Size - Insert	Plating
McGill Microwave Systems M85049/51-1-24W	Aluminum Alloy	Unshielded	0.706 in	1.081 in	Cable Clamp	Olive Drab	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	1.593 in	90 °	24	24	Cadmium

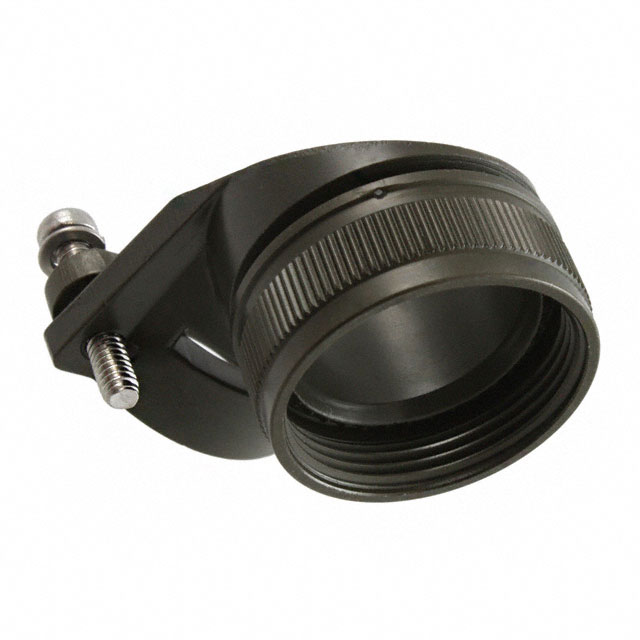

McGill Microwave Systems M85049/51-1-20W	Aluminum Alloy	Unshielded	0.581 in	0.831 in	Cable Clamp	Olive Drab	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	1.345 in	90 °		20 37	Cadmium

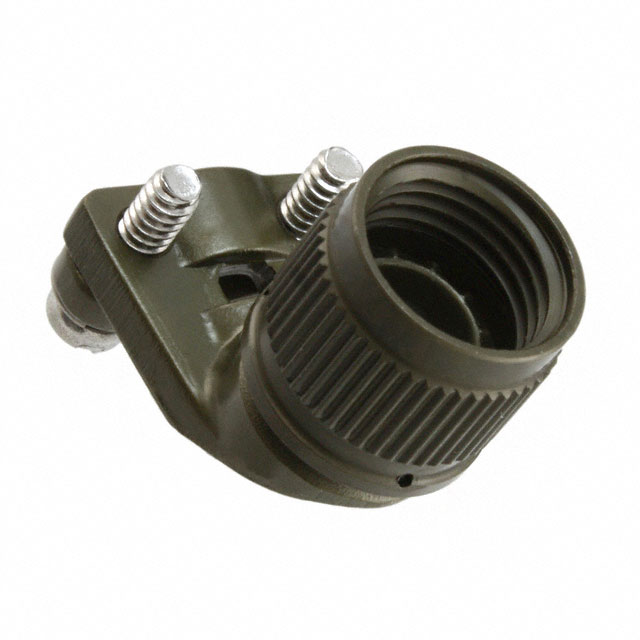

McGill Microwave Systems M85049/51-1-8W	Aluminum Alloy	Unshielded	0.125 in	0.204 in	Cable Clamp	Olive Drab	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	0.617 in	90 °	8	8	Cadmium
McGill Microwave Systems M85049/51-1-14N	Aluminum Alloy	Unshielded	0.351 in	0.476 in	Cable Clamp	Silver	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	0.984 in	90 °		12 14	Electroless Nickel
McGill Microwave Systems M85049/51-1-8W	Aluminum Alloy	Unshielded	0.125 in	0.204 in	Cable Clamp	Olive Drab	Clamp Screws		0.617 in	90 °	8	8	Cadmium
McGill Microwave Systems M85049/51-1-20W	Aluminum Alloy	Unshielded	0.581 in	0.831 in	Cable Clamp	Olive Drab	Clamp Screws		1.345 in	90 °		20 37	Cadmium
McGill Microwave Systems M85049/51-1-14N	Aluminum Alloy	Unshielded	0.351 in	0.476 in	Cable Clamp	Silver	Clamp Screws		0.984 in	90 °		12 14	Electroless Nickel
McGill Microwave Systems M85049/51-1-12N	Aluminum Alloy	Unshielded	0.291 in	0.416 in	Cable Clamp	Silver	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	0.858 in	90 °		12 7	Electroless Nickel
