ELVH-030A Series

Catalog

SENSOR 30.02PSIA 0.19"

Part	Voltage - Supply	Port Style	Output Type	Accuracy	Maximum Pressure	Pressure Type	Port Diameter	Port Gender	Port Feature	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Features	Termination Style	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Pressure	Package Width	Package Name	Package Features	Package Length	Package / Case

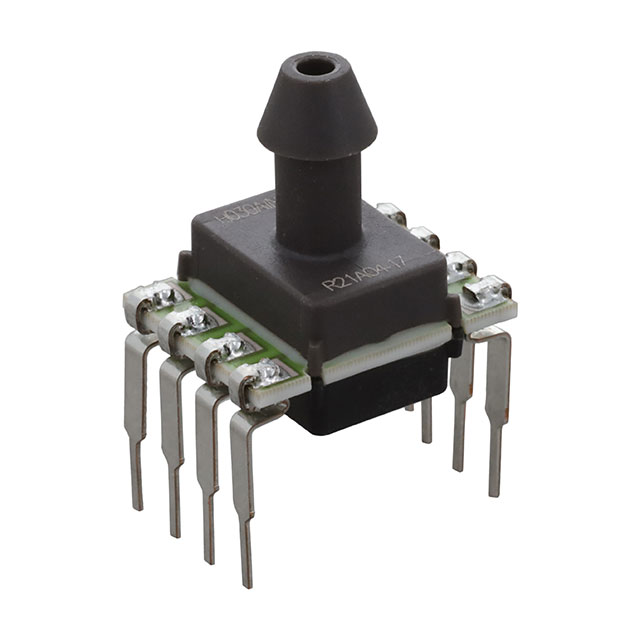

McGill Microwave Systems ELVH-030A-HAND-C-NAA5	5 VDC	Barbed	Analog Voltage	0.25 %	60.05 PSI	Absolute	0.19 "	Male	Tube	0 °C	50 °C	Through Hole	Temperature Compensated	PC Pin	5.5 V	2.7 V	30 PSI	13.3 mm	8-DIP	Top Port	0.524 in

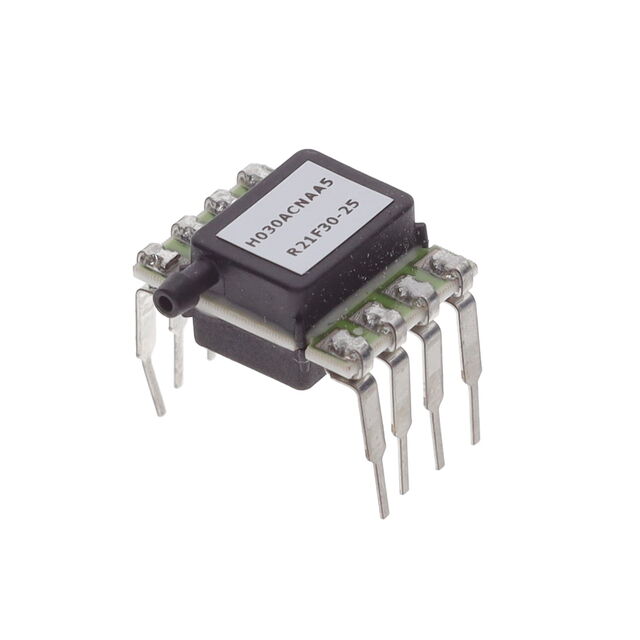

McGill Microwave Systems ELVH-030A-HRND-C-NAA5	5 VDC	Barbed	Analog Voltage	0.25 %	60.05 PSI	Absolute	0.06 in	Male	Tube	0 °C	50 °C	Through Hole	Temperature Compensated	PC Pin	5.5 V	2.7 V	30 PSI	13.3 mm	8-DIP	Side Port	0.524 in

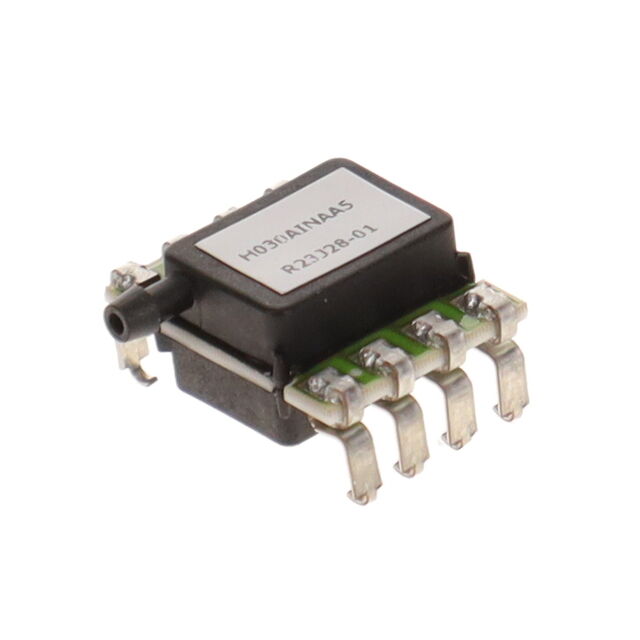

McGill Microwave Systems ELVH-030A-HRNJ-I-NAA5	5 VDC	Barbed	Analog Voltage	0.25 %	60.05 PSI	Absolute	0.06 in	Male	Tube	-20 °C	85 °C	Surface Mount	Temperature Compensated	J Lead	5.5 V	2.7 V	30 PSI					8-SMD J-Lead Side Port
