Ecomate RM Series

Catalog

STANDARD CIRCULAR CONNECTOR ECO MATE-RM-CONNECTORS

Part	Contact Type	Orientation	Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Features	Insert Material	Number of Positions	Shielding	Shell Material	Connector Type	Material Flammability Rating	Shell Finish	Primary Material	Note	Housing Color	Shell Size - Insert Length	Shell Size - Insert Width	Contact Size	Contact Shape	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Mounting Feature	Includes Total Count	Includes	For Use With/Related Products	Color	Material	Accessory Type	Shell Size - Insert	Shell Size - Insert
McGill Microwave Systems RT06164SNHEC03	Crimp	N (Normal)	For Female Sockets	Free Hanging (In-Line)	125 °C	-40 °C	Bayonet Lock	Dust Tight Waterproof	IP67	Coupling Nut	Thermoplastic	4	Shielded	Zinc Alloy	Plug Housing	UL94 V-0	Nickel	Metal	Contacts Not Included	Silver	16 mm	4 mm	8	Circular
McGill Microwave Systems RT06102PNHEC03	Crimp	N (Normal)	For Male Pins	Free Hanging (In-Line)	125 °C	-40 °C	Bayonet Lock	Dust Tight Waterproof	IP67	Coupling Nut	Thermoplastic	2	Shielded	Zinc Alloy	Plug Housing	UL94 V-0	Nickel	Metal	Contacts Not Included	Silver	10 mm	2 mm	16 20	Circular
McGill Microwave Systems RT06148SNHEC	Crimp	N (Normal)	For Female Sockets	Free Hanging (In-Line)			Bayonet Lock	Dust Tight Waterproof	IP67	Coupling Nut		8	Shielded	Zinc Alloy	Plug Housing	UL94 V-0	Nickel	Metal		Silver	14 mm	8 mm	16 S

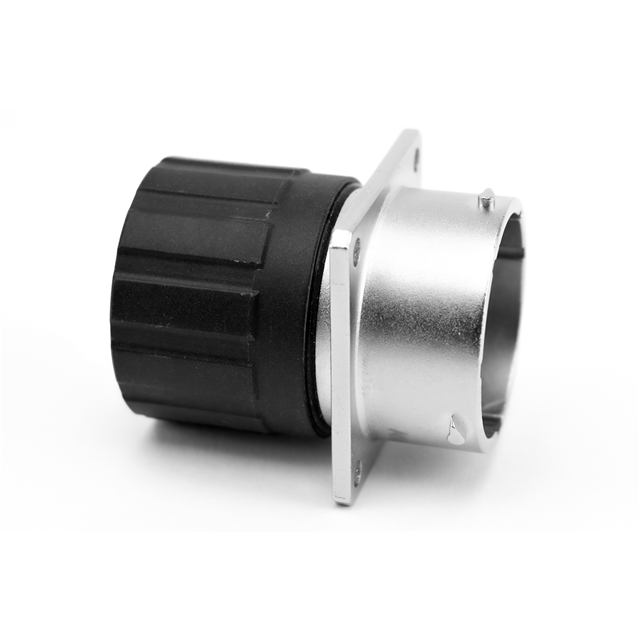

McGill Microwave Systems RT002028SNHEC	Crimp	N (Normal)	For Female Sockets	Panel Mount	105 °C	-40 °C	Bayonet Lock	Dust Tight Waterproof	IP67	Backshell	Thermoplastic	28	Shielded	Zinc Alloy	Receptacle Housing	UL94 V-0	Nickel		Contacts Not Included	Silver			16 S	Circular	28	20	Flange
McGill Microwave Systems RT06164PNH03	Crimp	N (Normal)	For Male Pins	Free Hanging (In-Line)			Bayonet Lock	Dust Tight Waterproof	IP67	Coupling Nut		4	Shielded	Zinc Alloy	Plug Housing	UL94 V-0	Nickel			Silver	16 mm	4 mm	3.6 mm
McGill Microwave Systems RT00104PNHEC03	Crimp	N (Normal)	For Male Pins	Panel Mount			Bayonet Lock	Dust Tight Waterproof	IP67	Cap (Cover)		4	Shielded	Zinc Alloy	Receptacle Housing	UL94 V-0	Nickel	Metal		Silver	10 mm	4 mm	16 S				Flange

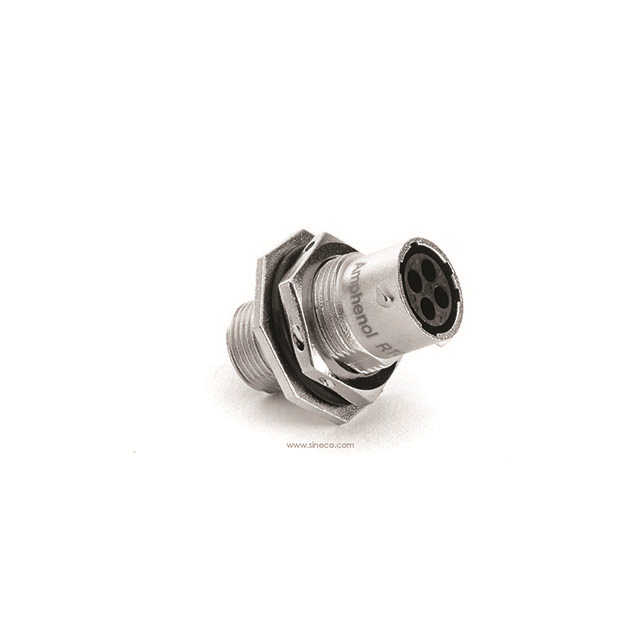

McGill Microwave Systems RT07104SNH03	Crimp	N (Normal)	For Female Sockets	Panel Mount	125 °C	-40 °C	Bayonet Lock	Dust Tight Waterproof	IP67		Thermoplastic	4	Shielded	Zinc Alloy	Receptacle Housing	UL94 V-0	Nickel		Contacts Not Included	Silver	10 mm	4 mm	16 S	Circular			Bulkhead Front Side Nut	4 pcs	Connector Gasket Nut O-Ring
McGill Microwave Systems RT071823PNHEC03
McGill Microwave Systems RT012RL										Metal Chain																				Circular Connectors	Silver	Silicone Rubber	Cap (Cover) Dust	12	12
McGill Microwave Systems RT00104PNHEC	Crimp	N (Normal)	For Male Pins	Panel Mount			Bayonet Lock	Dust Tight Waterproof	IP67	Backshell		4	Shielded	Zinc Alloy	Receptacle Housing	UL94 V-0	Nickel			Silver	10 mm	4 mm	16 S				Flange
