RT07102 Series

Catalog

4 (2+2) POSITION JAM NUT RECEPTACLE, MALE, SILICONE SEAL, AND END CAP WITH INDIVIDUAL WIRE SEALING /BAG ROHS COMPLIANT: YES

Part	Features	Primary Material	Material Flammability Rating	Shell Material	Contact Type	Orientation	Contact Size	Note	Number of Positions	Fastening Type	Housing Color	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Contact Shape	Shell Finish	Connector Type	Type	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert Length	Shell Size - Insert Width	Shielding	Mounting Feature	Includes Total Count	Includes
McGill Microwave Systems RT07102PNHEC03	Cap (Cover)	Metal	UL94 V-0	Zinc Alloy	Crimp	N (Normal)	16 20	Contacts Not Included	2	Bayonet Lock	Silver	Thermoplastic	Dust Tight Waterproof	IP67	Panel Mount	Circular	Nickel	Receptacle Housing	For Male Pins	125 °C	-40 °C	10 mm	2 mm	Shielded	Bulkhead Front Side Nut

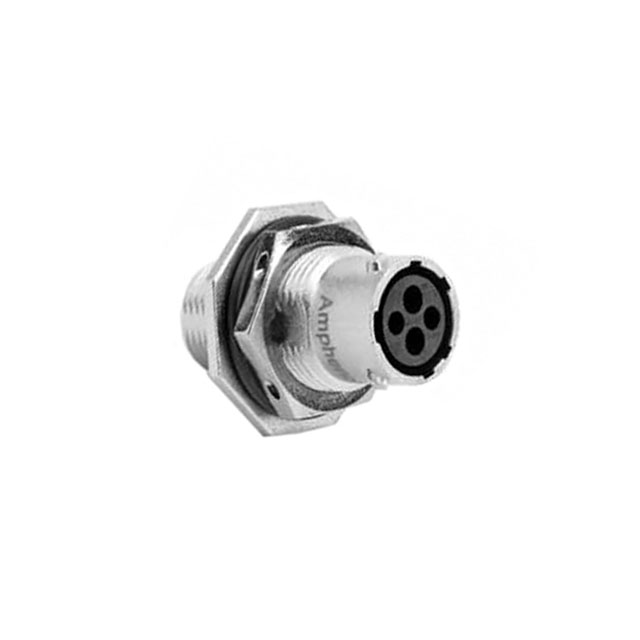

McGill Microwave Systems RT07102SNH			UL94 V-0	Zinc Alloy	Crimp	N (Normal)	16 20	Contacts Not Included	4	Bayonet Lock	Silver	Thermoplastic	Dust Tight Waterproof	IP67	Panel Mount	Circular	Nickel	Receptacle Housing	For Female Sockets	105 °C	-40 °C	10 mm	2 mm	Shielded	Bulkhead Front Side Nut
McGill Microwave Systems RT07102PNH03			UL94 V-0	Zinc Alloy	Crimp	N (Normal)	16 20	Contacts Not Included	4	Bayonet Lock	Silver	Thermoplastic	Dust Tight Waterproof	IP67	Panel Mount	Circular	Nickel	Receptacle Housing	For Male Pins	125 °C	-40 °C	10 mm	2 mm	Shielded	Bulkhead Front Side Nut	4 pcs	Connector Gasket Nut O-Ring
