RT07103 Series

Catalog

RECEPTACLE, JAM NUT, 6 (3+3) POS

Part	Connector Type	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Material Flammability Rating	Contact Size	Orientation	Fastening Type	Contact Shape	Mounting Type	Mounting Feature	Contact Type	Shell Material	Includes Total Count	Includes	Type	Number of Positions	Shielding	Note	Housing Color	Operating Temperature (Min)	Operating Temperature (Max)	Primary Material	Shell Size - Insert	Shell Finish	Shell Size - Insert Length	Shell Size - Insert Width

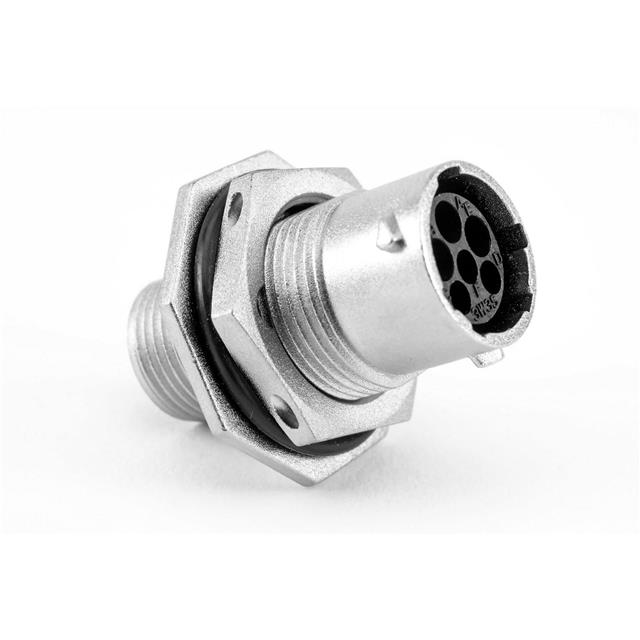

McGill Microwave Systems RT07103W3SNH	Receptacle Housing	Thermoplastic	Dust Tight Waterproof	IP67	UL94 V-0	16 20	N (Normal)	Bayonet Lock	Circular	Panel Mount	Bulkhead Front Side Nut	Crimp	Zinc Alloy	4 pcs	Connector Gasket Nut O-Ring	For Female Sockets	6	Shielded	Contacts Not Included	Silver	-40 °C	105 °C	Metal	10-3W3	Nickel
McGill Microwave Systems RT07103W3PNH	Receptacle Housing	Thermoplastic	Dust Tight Waterproof	IP67	UL94 V-0	16 20	N (Normal)	Bayonet Lock	Circular	Panel Mount	Bulkhead Front Side Nut	Crimp	Zinc Alloy	4 pcs	Connector Gasket Nut O-Ring	For Male Pins	6	Shielded	Contacts Not Included	Silver	-40 °C	105 °C	Metal	10-3W3	Nickel
McGill Microwave Systems RT07103SNH	Receptacle Housing		Dust Tight Waterproof	IP67	UL94 V-0	16 S	N (Normal)	Bayonet Lock		Free Hanging (In-Line) Panel Mount	Bulkhead Front Side Nut	Crimp	Zinc Alloy			For Female Sockets	3	Shielded		Silver			Metal		Nickel	10 mm	3 mm
McGill Microwave Systems RT07103PNH03
McGill Microwave Systems RT07103W3SNH03	Receptacle Housing	Thermoplastic	Dust Tight Waterproof	IP67	UL94 V-0	16 20	N (Normal)	Bayonet Lock	Circular	Panel Mount	Bulkhead Front Side Nut	Crimp	Zinc Alloy	4 pcs	Connector Gasket Nut O-Ring	For Female Sockets	6	Shielded	Contacts Not Included	Silver	-40 °C	125 °C	Metal	10-3W3	Nickel
McGill Microwave Systems RT07103SNH03	Receptacle Housing		Dust Tight Waterproof	IP67	UL94 V-0	16 S	N (Normal)	Bayonet Lock		Free Hanging (In-Line) Panel Mount	Bulkhead Front Side Nut	Crimp	Zinc Alloy			For Female Sockets	3	Shielded		Silver			Metal		Nickel	10 mm	3 mm
McGill Microwave Systems RT07103W3PNH03	Receptacle Housing	Thermoplastic	Dust Tight Waterproof	IP67	UL94 V-0	16 20	N (Normal)	Bayonet Lock	Circular	Panel Mount	Bulkhead Front Side Nut	Crimp	Zinc Alloy	4 pcs	Connector Gasket Nut O-Ring	For Male Pins	6	Shielded	Contacts Not Included	Silver	-40 °C	125 °C	Metal	10-3W3	Nickel
McGill Microwave Systems RT07103PNH	Receptacle Housing		Dust Tight Waterproof	IP67	UL94 V-0	16 S	N (Normal)	Bayonet Lock		Free Hanging (In-Line) Panel Mount	Bulkhead Front Side Nut	Crimp	Zinc Alloy			For Male Pins	3	Shielded		Silver			Metal		Nickel	10 mm	3 mm
