NBN12 Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K
INDUCTIVE SEN 12MM PNP
| Part | Shielding | Ingress Protection | Termination Style | Output Type | Sensor Type | Indicator | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case | Sensing Distance | Material - Body | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

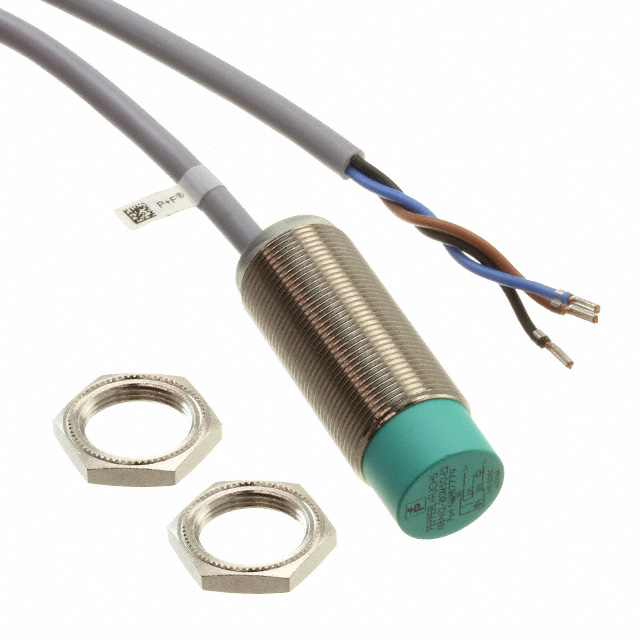

 Pepperl+Fuchs, Inc. | Unshielded | IP67 | Cable | 3-Wire PNP-NO | Inductive | LED | 70 °C | -25 °C | Cylinder Threaded - M18 | 0.472 " | Nickel-Plated Brass | 10 VDC | 30 VDC |
 Pepperl+Fuchs, Inc. | Unshielded | IP67 | Connector | 3-Wire PNP-NO | Inductive | LED | 70 °C | -25 °C | Cylinder Threaded - M18 | 0.472 " | Nickel-Plated Brass | 10 VDC | 30 VDC |
 Pepperl+Fuchs, Inc. | Unshielded | IP67 | Connector | 3-Wire PNP-NO | Inductive | LED | 70 °C | -40 °C | Cylinder Threaded - M18 | 0.472 " | Nickel-Plated Brass | 10 VDC | 30 VDC |
