2375558 Series

Catalog

EP3.96 POTTED HEADER,3P SELECTIVE

Part	Contact Material	Current Rating	Contact Finish - Mating	Insulation Height	Voltage Rating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Contact Finish - Post	Contact Length - Mating	Fastening Type	Shrouding	Style	Insulation Color	Contact Shape	Number of Rows	Mounting Type	Number of Positions	Material Flammability Rating	Contact Length - Post	Insulation Material	Connector Type	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-2375558-3	Copper Alloy	12.3 A	Tin	0.622 in	600 V	78.7 Ąin	3	0.156 in	Tin	0.264 in	Locking Ramp	Shrouded - 4 Wall	Board Cable/Wire	Natural	Square	1	Through Hole	3	UL94 V-0	0.138 in	Resin	Header	Male Pin	-55 °C	105 °C	Solder	78.7 µin

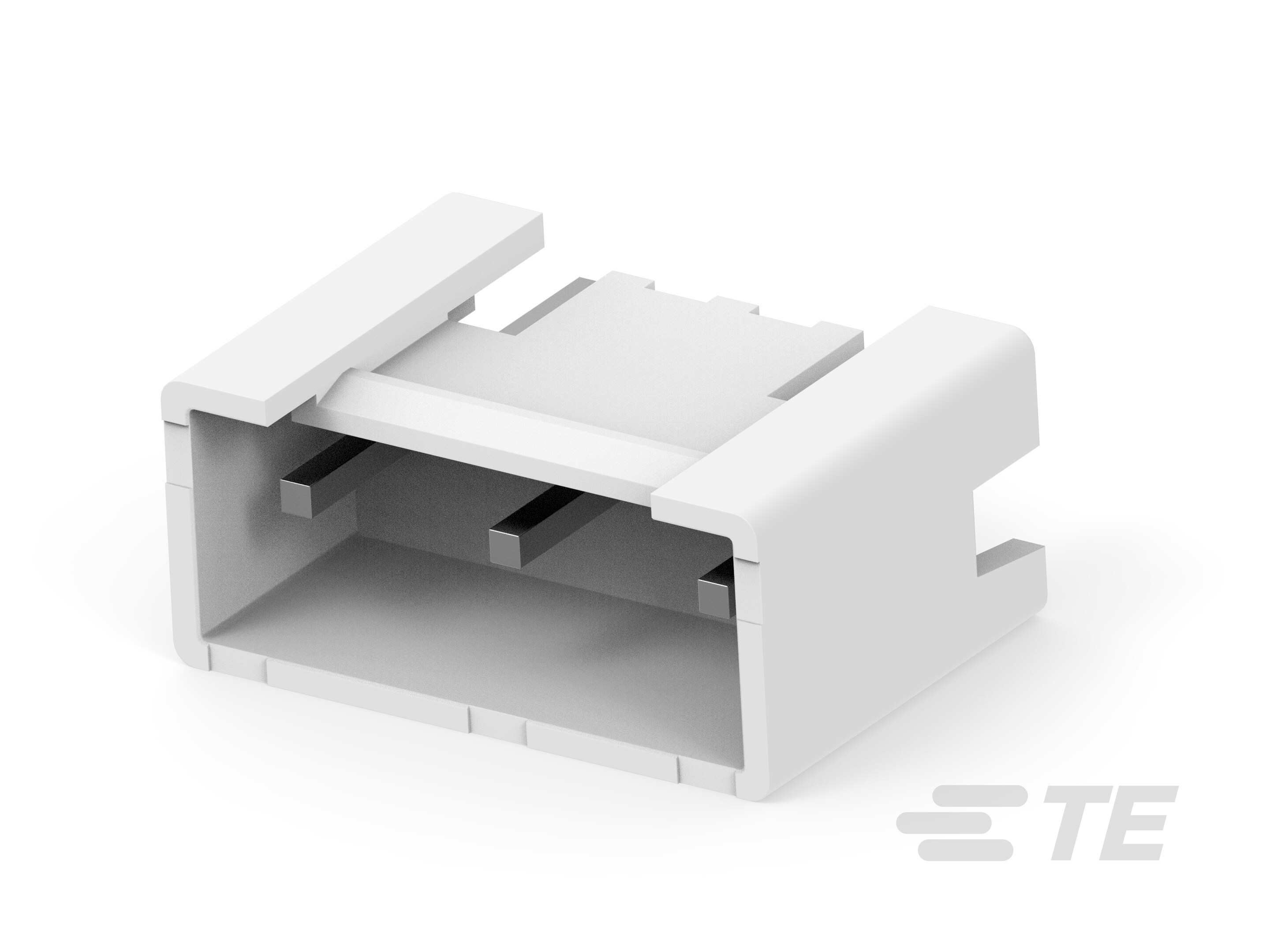

TE Connectivity AMP Connectors 1-2375558-5	Copper Alloy	12.3 A	Tin	0.622 in	600 V	78.7 Ąin	3	0.156 in	Tin	0.264 in	Locking Ramp	Shrouded - 4 Wall	Board Cable/Wire	Natural	Square	1	Through Hole	5	UL94 V-0	0.138 in	Resin	Header	Male Pin	-55 °C	105 °C	Solder	78.7 µin
