TJ15 Series

Catalog

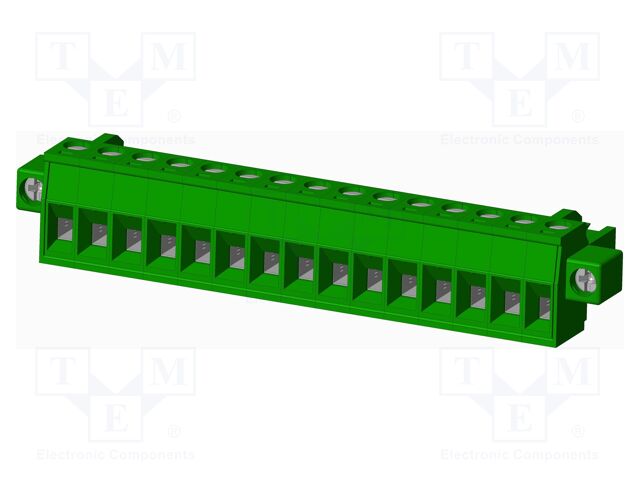

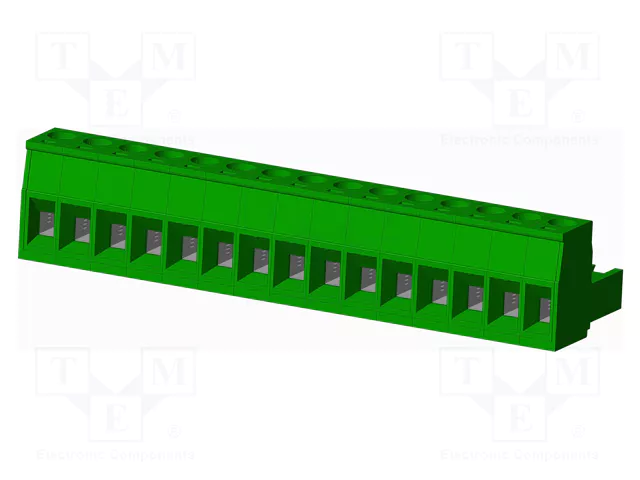

TERM BLOCK PLUG 15POS STR 7.62MM

Part	Contact Mating Finish	Pitch	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Color	Number of Positions	Termination Style	Voltage - UL	Mounting Type	Positions Per Level	Features	Operating Temperature (Min)	Operating Temperature (Max)	Type	Current - UL	Number of Levels	Plug Wire Entry Angle	Torque - Screw	Wire Strip Length (Max)	Wire Strip Length (Min)	Screw Size	Contact Material	Insulation Height	Housing Material	Material Flammability Rating	Wire Gauge or Range - mm²	Current - IEC	Voltage - IEC	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)
McGill Microwave Systems TJ1501020000G	Tin	0.3 in	24 AWG	12 AWG	Black	15	Screw	300 V	Free Hanging (In-Line)	15	Mating Flange Retention Latches (Non-Wire Side)	-40 °C	115 °C	Female Sockets Plug	20 A	1	180 °	0.56 Nm	8 mm	7 mm	M3	Phosphor Bronze	0.594 in	Thermoplastic	UL94 V-0
McGill Microwave Systems TJ1511040000G	Tin	0.138 in	28 AWG	16 AWG	Black	15	Screw	300 V	Free Hanging (In-Line)	15	Strain Relief	-40 °C	115 °C	Female Sockets Plug	10 A	1	180 °		7 mm	6 mm	M2	Phosphor Bronze		Thermoplastic	UL94 V-0	1.5 mm²	10.5 A	300 V
McGill Microwave Systems TJ1511540000G	Tin	0.138 in	28 AWG	16 AWG	Green	15	Screw	300 V	Free Hanging (In-Line)	15	Strain Relief	-40 °C	115 °C	Female Sockets Plug	10 A	1	180 °		7 mm	6 mm	M2	Phosphor Bronze		Thermoplastic	UL94 V-0	1.5 mm²	10.5 A	300 V
McGill Microwave Systems TJ1571500000G	Tin	0.197 in	24 AWG	12 AWG	Green	15	Screw	300 V	Free Hanging (In-Line)	15	Retention Latches (Non-Wire Side)	-40 °C	115 °C	Female Sockets Plug	20 A	1	180 °	0.56 Nm	8 mm	7 mm	M3	Copper	0.594 in	Thermoplastic	UL94 V-0		20 A	300 V	2.5 mm²	0.34 mm²
McGill Microwave Systems TJ1551070000G	Tin	5.08 mm	24 AWG	12 AWG	Black	15	Screw	300 V	Free Hanging (In-Line)	15	Mating Flange Retention Latches (Non-Wire Side)	-40 °C	115 °C	Female Sockets Plug	20 A	1	180 °	0.56 Nm	8 mm	7 mm	M3	Copper	0.594 in	Thermoplastic	UL94 V-0
McGill Microwave Systems TJ15A1000000G	Tin	0.295 in	24 AWG	12 AWG	Black	15	Screw	300 V	Free Hanging (In-Line)	15	Retention Latches (Non-Wire Side)	-40 °C	115 °C	Female Sockets Plug	20 A	1	180 °	0.56 Nm	8 mm	7 mm	M3	Copper	0.594 in	Thermoplastic	UL94 V-0
McGill Microwave Systems TJ1511530000G	Tin	0.138 in	25.5 AWG	16 AWG	Green	15	Screw - Rising Cage Clamp	300 V	Free Hanging (In-Line)	15		-40 °C	115 °C	Female Sockets Plug	10 A	1	180 °	0.23 Nm	7 mm	6 mm	M2	Copper Alloy	0.437 in	Thermoplastic Resin	UL94 V-0				1.5 mm²	0.5 mm²
McGill Microwave Systems TJ1531820000G	Tin	0.15 in	28 AWG	16 AWG	Gray	15	Screw	300 V	Free Hanging (In-Line)	15	Mating Flange	-40 °C	115 °C	Female Sockets Plug	10 A	1	180 °		7 mm	6 mm	M2	Phosphor Bronze	0.437 in	Thermoplastic	UL94 V-0	1.5 mm²	10.5 A	300 V
McGill Microwave Systems TJ1571870000G	Tin	0.197 in	24 AWG	12 AWG	Gray	15	Screw	300 V	Free Hanging (In-Line)	15	Mating Flange Retention Latches (Non-Wire Side)	-40 °C	115 °C	Female Sockets Plug	20 A	1	180 °	0.56 Nm	8 mm	7 mm	M3	Copper	0.594 in	Thermoplastic	UL94 V-0
McGill Microwave Systems TJ1571570000G	Tin	0.197 in	24 AWG	12 AWG	Green	15	Screw	300 V	Free Hanging (In-Line)	15	Mating Flange Retention Latches (Non-Wire Side)	-40 °C	115 °C	Female Sockets Plug	20 A	1	180 °	0.56 Nm	8 mm	7 mm	M3	Copper	0.594 in	Thermoplastic	UL94 V-0
