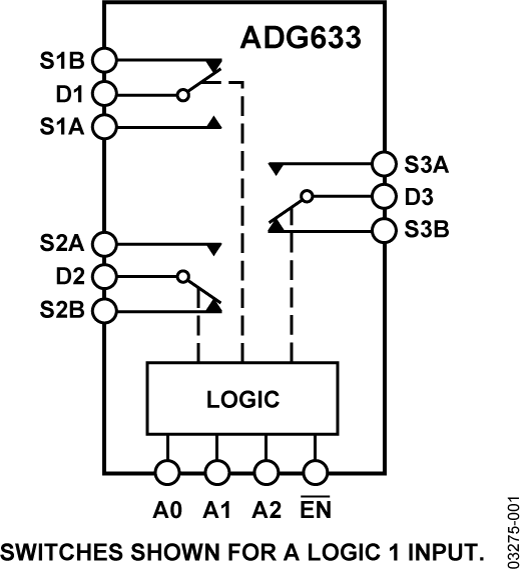

ADG633 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC SWITCH SPDT X 3 75OHM 16TSSOP

Part	Multiplexer Inputs	Demultiplexer Outputs	Package Name	On-State Resistance (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	Switch Time Ton (Max)	Switch Time Toff (Max)	Crosstalk	Switch Circuit Type	Package Length	Package Width	Number of Circuits	Charge Injection	Channel-to-Channel Matching (ΔRon)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	-3db Bandwidth	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Minimum)	Current - Leakage (Max)	Package / Case
Analog Devices Inc./Maxim Integrated ADG633YRU	2	1	16-TSSOP	75 Ohm	125 °C	-40 °C	Surface Mount	2 V	12 V	95 ns	40 ns	-90 dB	SPDT	0.173 in	4.4 mm	3	2 pC	800 mOhm	4 pF	7 pF	580 MHz	2 V	6 V	-2 V	200 pA
Analog Devices Inc./Maxim Integrated ADG633YCPZ-REEL7	2	1	16-LFCSP-VQ	75 Ohm	85 °C	-40 °C	Surface Mount	2 V	12 V	95 ns	40 ns	-90 dB	SPDT	4 mm	4 mm	3	2 pC	800 mOhm	4 pF	7 pF	580 MHz	2 V	6 V	-2 V	200 pA	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG633YCPZ	2	1	16-LFCSP-VQ	75 Ohm	85 °C	-40 °C	Surface Mount	2 V	12 V	95 ns	40 ns	-90 dB	SPDT	4 mm	4 mm	3	2 pC	800 mOhm	4 pF	7 pF	580 MHz	2 V	6 V	-2 V	200 pA	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG633YRUZ	2	1	16-TSSOP	75 Ohm	125 °C	-40 °C	Surface Mount	2 V	12 V	95 ns	40 ns	-90 dB	SPDT	0.173 in	4.4 mm	3	2 pC	800 mOhm	4 pF	7 pF	580 MHz	2 V	6 V	-2 V	200 pA
Analog Devices Inc./Maxim Integrated ADG633YRUZ-REEL7	2	1	16-TSSOP	75 Ohm	125 °C	-40 °C	Surface Mount	2 V	12 V	95 ns	40 ns	-90 dB	SPDT	0.173 in	4.4 mm	3	2 pC	800 mOhm	4 pF	7 pF	580 MHz	2 V	6 V	-2 V	200 pA
