RT00124 Series

Catalog

RECEPTACLE, SQUARE FLANGE, 4 POS

Part	Orientation	Note	Shell Material	Contact Type	Shell Size - Insert Length	Shell Size - Insert Width	Contact Shape	Mounting Type	Number of Positions	Shielding	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Material Flammability Rating	Insert Material	Mounting Feature	Shell Finish	Features	Housing Color	Connector Type	Contact Size	Operating Temperature (Max)	Operating Temperature (Min)	Type	Primary Material
McGill Microwave Systems RT00124PNHEC03R	N (Normal)	Contacts Not Included	Zinc Alloy	Crimp	12 mm	4 mm	Circular	Panel Mount	4	Shielded	Bayonet Lock	Dust Tight Waterproof	IP67	UL94 V-0	Thermoplastic	Flange	Nickel	Backshell	Silver	Receptacle Housing	16 S	125 °C	-40 °C	For Male Pins
McGill Microwave Systems RT00124SNHEC03R	N (Normal)	Contacts Not Included	Zinc Alloy	Crimp	12 mm	4 mm	Circular	Panel Mount	4	Shielded	Bayonet Lock	Dust Tight Waterproof	IP67	UL94 V-0	Thermoplastic	Flange	Nickel	Backshell	Silver	Receptacle Housing	16 S	125 °C	-40 °C	For Female Sockets
McGill Microwave Systems RT00124PNH
McGill Microwave Systems RT00124SNH	N (Normal)		Zinc Alloy	Crimp	12 mm	4 mm		Free Hanging (In-Line) Panel Mount	4	Shielded	Bayonet Lock	Dust Tight Waterproof	IP67	UL94 V-0		Flange	Nickel		Silver	Receptacle Housing	16 S			For Female Sockets	Metal
McGill Microwave Systems RT00124PNH03

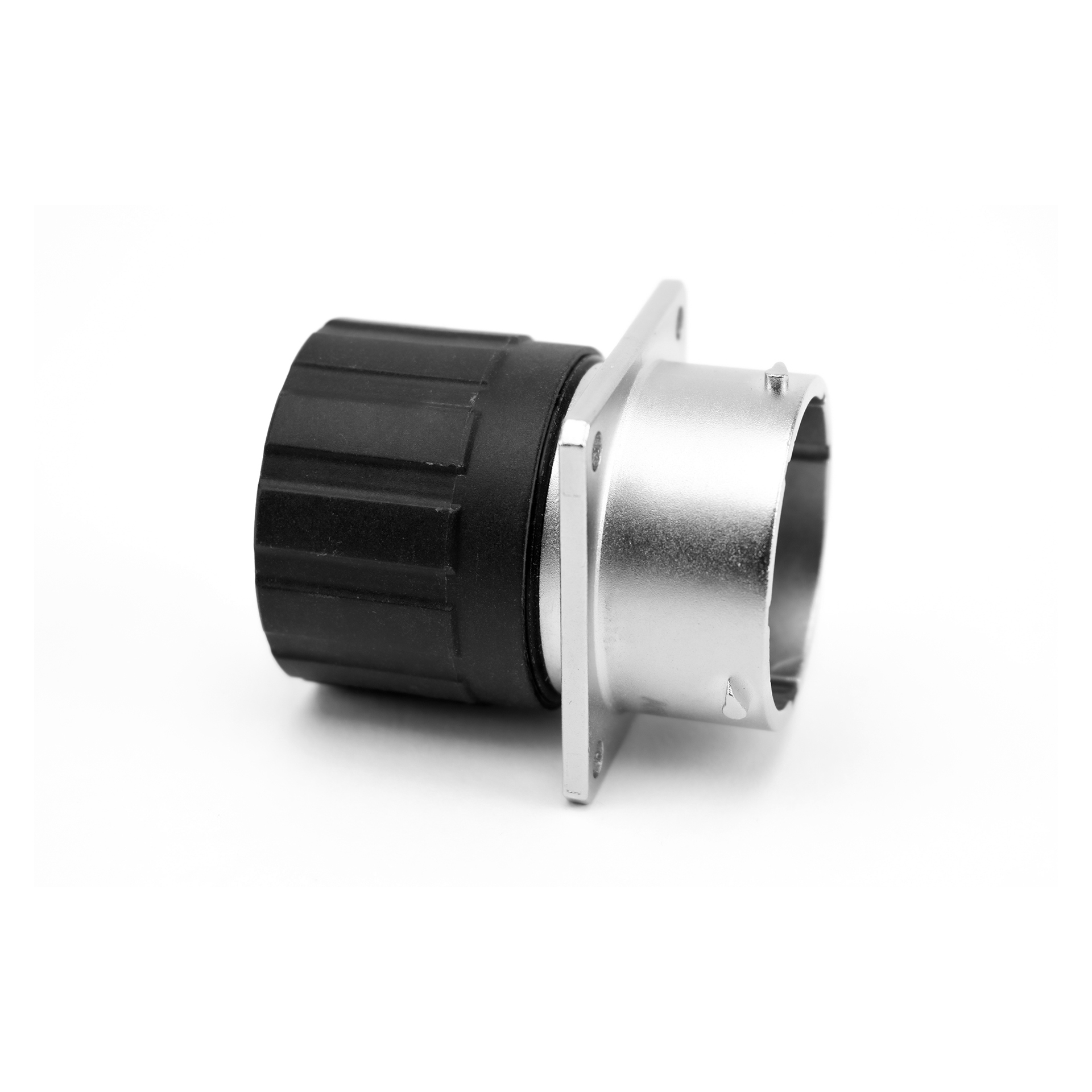

McGill Microwave Systems RT00124SNHECR	N (Normal)	Contacts Not Included	Zinc Alloy	Crimp	12 mm	4 mm	Circular	Panel Mount	4	Shielded	Bayonet Lock	Dust Tight Waterproof	IP67	UL94 V-0	Thermoplastic	Flange	Nickel	Cap (Cover)	Silver	Receptacle Housing	16 S	105 °C	-40 °C	For Female Sockets	Metal
McGill Microwave Systems RT00124SNH03
