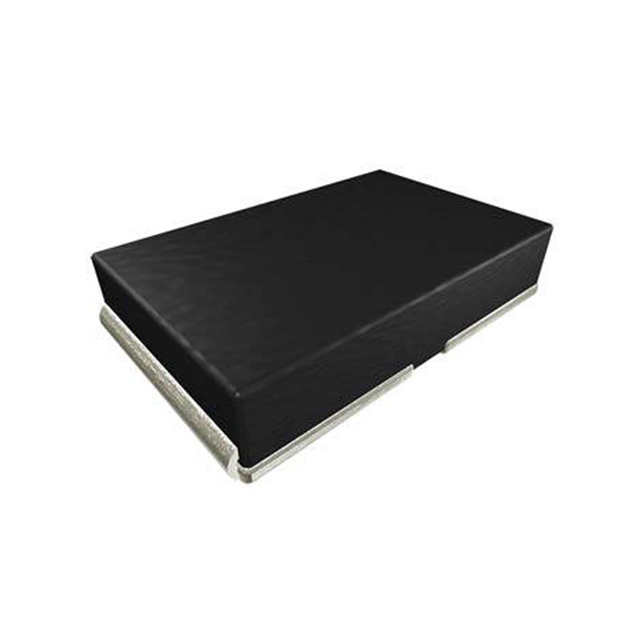

WSHP2818 Series
Manufacturer: Vishay Dale
Beta
⌘K
SMD CURRENT SENSE RESISTOR, 0.05 OHM, WSHP2818 SERIES, 2818 [7146 METRIC], 10 W, ± 1%
| Part | Package / Case | Height - Seated (Max) | Features | Number of Terminations | Composition | Resistance | Size / Dimension Width | Size / Dimension Length | Power (Watts) | Temperature Coefficient | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Tolerance | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | Nonstandard | 0.069 in | Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 2 | Metal Element | 0.05 Ohms | 0.181 in | 0.28 in | 10 W | 75 ppm/¯C | 2818 | -65 °C | 170 °C | 1 % | |
 Vishay Dale | Nonstandard | 0.069 in | Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 2 | Metal Element | 100 mOhms | 0.181 in | 0.28 in | 10 W | 75 ppm/¯C | 2818 | -65 °C | 170 °C | 1 % | AEC-Q200 |
