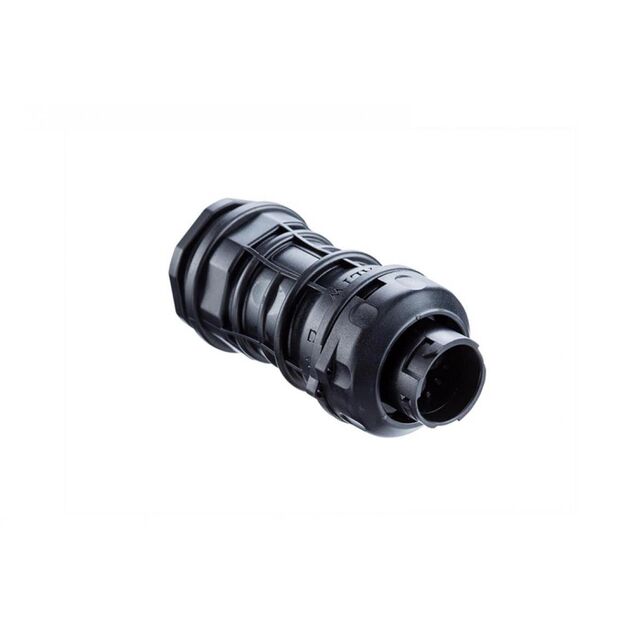

PWH-05BMMC Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
POWER, PWH, PLASTIC, 25A, 05 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, 2 POINTS LOCK, CRIMP, FIELD INSTALLABLE, 13.0 - 16.0M
| Part | Cable Opening (Min) | Cable Opening (Max) | Termination | Number of Positions | Shell Material | Ingress Protection IP Rating | Ingress Protection Description | Contact Finish - Mating | Orientation | Connector Type | Shielding | Color | Voltage Rating (AC) | Voltage Rating (DC) | Primary Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Fastening Type | Mounting Type | Material Flammability Rating | Current Rating | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 0.512 in | 0.63 in | Crimp | 5 | Polyphenylene Ether (PPE) | IP68 | Dust Tight Waterproof | Tin | Keyed | Male Pins Plug | Unshielded | Black | 660 VAC | 1000 VDC | Plastic | -40 °C | 105 °C | Copper | Bayonet Lock | Free Hanging (In-Line) | UL94 V-0 | 25 A | Polyphenylene Ether PPE |
