ADM6710 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

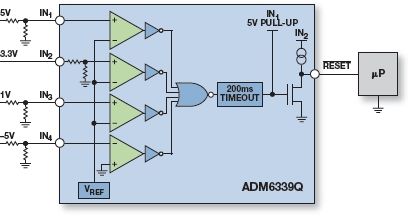

LOW VOLTAGE, HIGH ACCURACY, TRIPLE/QUAD VOLTAGE MICROPROCESSOR SUPERVISORY CIRCUIT

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Threshold	Voltage - Threshold (Value 1)	Voltage - Threshold (Value 2)	Number of Voltages Monitored	Package / Case	Reset	Package Name	Mounting Type	Reset Timeout (Minimum)	Type	Output	Voltage - Threshold (Value 3)
Analog Devices Inc./Maxim Integrated ADM6710KARJZ-REEL7	125 °C	-40 °C	Adj	1.58 V	2.93 V	4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain
Analog Devices Inc./Maxim Integrated ADM6710HARJZ-REEL7	125 °C	-40 °C	Adj	3.08 V	4.63 V	4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain
Analog Devices Inc./Maxim Integrated ADM6710QARJZ-REEL7	125 °C	-40 °C	Adjustable Selectable			4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain
Analog Devices Inc./Maxim Integrated ADM6710FARJZ-REEL7	125 °C	-40 °C	Adj	1.67 V	2.32 V	4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain	3.08 V
Analog Devices Inc./Maxim Integrated ADM6710CARJZ-REEL7	125 °C	-40 °C	Adj	1.58 V	2.93 V	4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain	4.38 V
Analog Devices Inc./Maxim Integrated ADM6710NARJZ-REEL7	125 °C	-40 °C	Adj	2.32 V	2.78 V	4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain
Analog Devices Inc./Maxim Integrated ADM6710JARJZ-REEL7	125 °C	-40 °C	Adj	2.32 V	3.08 V	4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain
Analog Devices Inc./Maxim Integrated ADM6710DARJZ-REEL7	125 °C	-40 °C	Adj	1.67 V	3.08 V	4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain	4.63 V
Analog Devices Inc./Maxim Integrated ADM6710F-TESTRL7	125 °C	-40 °C	Adj	1.67 V	2.32 V	4		Active Low			140 ms	Multi-Voltage Supervisor	Open Collector Open Drain	3.08 V
Analog Devices Inc./Maxim Integrated ADM6710LARJZ-REEL7	125 °C	-40 °C	Adj	1.67 V	3.08 V	4	SOT-23-6	Active Low	SOT-23-6	Surface Mount	140 ms	Multi-Voltage Supervisor	Open Collector Open Drain
