FLKC-05EGFS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

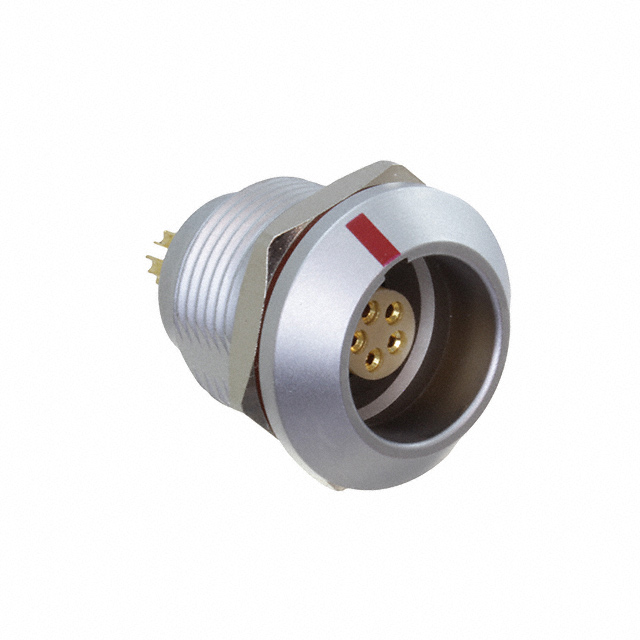

CONN RCPT FMALE 5P GOLD SLDR CUP
| Part | Current Rating | Shell Finish | Shielding | Operating Temperature (Max) | Operating Temperature (Min) | Termination | Insert Material | Number of Positions | Applications | Ingress Protection IP Rating | Ingress Protection Description | Color | Contact Material | Primary Material | Orientation | Shell Size - Insert | Fastening Type | Mounting Feature | Mounting Type | Connector Type | Voltage Rating | Contact Finish - Mating | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 9 A | Chrome | Shielded | 125 °C | -40 °C | Solder Cup | Polyphenylene Sulfide PPS | 5 | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP68 | Dust Tight Waterproof | Silver | Copper Alloy | Metal | G | C-5 | Push-Pull | Bulkhead Rear Side Nut | Panel Mount | Female Sockets Receptacle | 400 V | Gold | Copper Alloy |
