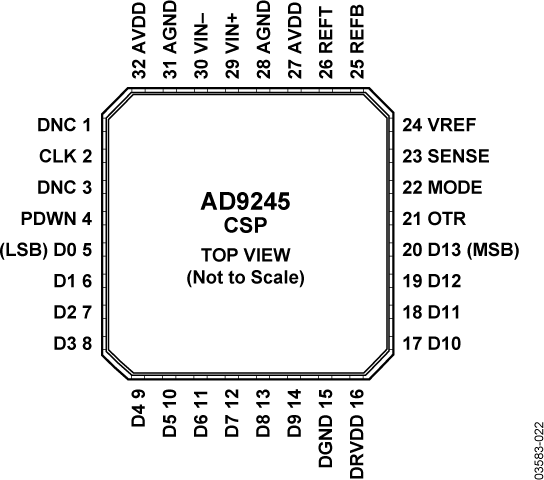

AD9245 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

1-CHANNEL SINGLE ADC PIPELINED 40MSPS 14-BIT PARALLEL 32-PIN LFCSP EP T/R

Part	Data Interface	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Package Width	Package Name	Package Length	Number of Inputs	Ratio - ADC	Ratio - S/H	Sampling Rate (Per Second)	Package / Case	Number of Bits	Operating Temperature (Min)	Operating Temperature (Max)	Reference Type	Mounting Type	Configuration	Input Type	Number of A/D Converters	Architecture
Analog Devices Inc./Maxim Integrated AD9245BCPZRL7-40	Parallel	2.7 V	3.6 V	2.25 V	3.6 V	5 mm	32-LFCSP-WQ	5 mm	1	1	1	40 MHz	32-WFQFN Exposed Pad CSP	14 bits	-40 °C	85 °C	External Internal	Surface Mount	S/H-ADC	Differential Single Ended	1 count	Pipelined
Analog Devices Inc./Maxim Integrated AD9245BCPZ-80	Parallel	2.7 V	3.6 V	2.25 V	3.6 V	5 mm	32-LFCSP-WQ	5 mm	1	1	1	80 MHz	32-WFQFN Exposed Pad CSP	14 bits	-40 °C	85 °C	External Internal	Surface Mount	S/H-ADC	Differential Single Ended	1 count	Pipelined
Analog Devices Inc./Maxim Integrated AD9245BCPZRL7-80	Parallel	2.7 V	3.6 V	2.25 V	3.6 V	5 mm	32-LFCSP-WQ	5 mm	1	1	1	80 MHz	32-WFQFN Exposed Pad CSP	14 bits	-40 °C	85 °C	External Internal	Surface Mount	S/H-ADC	Differential Single Ended	1 count	Pipelined
Analog Devices Inc./Maxim Integrated AD9245BCPZRL7-20	Parallel	2.7 V	3.6 V	2.25 V	3.6 V	5 mm	32-LFCSP-WQ	5 mm	1	1	1	20 MHz	32-WFQFN Exposed Pad CSP	14 bits	-40 °C	85 °C	External Internal	Surface Mount	S/H-ADC	Differential Single Ended	1 count	Pipelined
Analog Devices Inc./Maxim Integrated AD9245BCP-80	Parallel					5 mm	32-LFCSP-WQ	5 mm				80 MHz	32-WFQFN Exposed Pad CSP	14 bits	-40 °C	85 °C		Surface Mount			3 count
Analog Devices Inc./Maxim Integrated AD9245BCPZ-40	Parallel	2.7 V	3.6 V	2.25 V	3.6 V	5 mm	32-LFCSP-WQ	5 mm	1	1	1	40 MHz	32-WFQFN Exposed Pad CSP	14 bits	-40 °C	85 °C	External Internal	Surface Mount	S/H-ADC	Differential Single Ended	1 count	Pipelined
Analog Devices Inc./Maxim Integrated AD9245BCPZ-65	Parallel	2.7 V	3.6 V	2.25 V	3.6 V	5 mm	32-LFCSP-WQ	5 mm	1	1	1	65 MHz	32-WFQFN Exposed Pad CSP	14 bits	-40 °C	85 °C	External Internal	Surface Mount	S/H-ADC	Differential Single Ended	1 count	Pipelined
Analog Devices Inc./Maxim Integrated AD9245BCPZ-20	Parallel	2.7 V	3.6 V	2.25 V	3.6 V	5 mm	32-LFCSP-WQ	5 mm	1	1	1	20 MHz	32-WFQFN Exposed Pad CSP	14 bits	-40 °C	85 °C	External Internal	Surface Mount	S/H-ADC	Differential Single Ended	1 count	Pipelined
