336320 Series

Catalog

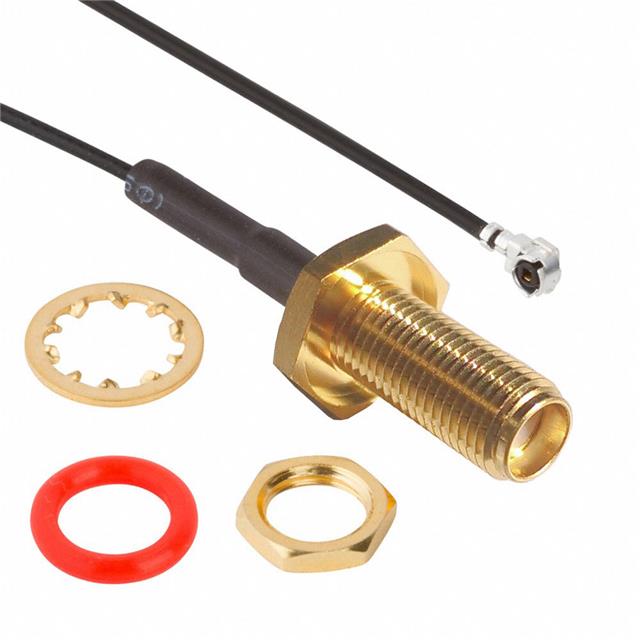

RF / COAXIAL CABLE ASSEMBLY, IP67, 90° AMC PLUG TO SMA RP BULKHEAD JACK, 1.13MM, 50 OHM, 5.9 "

Part	Overall Impedance	Ingress Protection Description	Ingress Protection IP Rating	2nd Connector Mounting Type	1st Connector Mounting Type	1st Connector Mounting Feature	Cable Type Size	Cable Type	Cable Outer Diameter	1st Connector	Frequency - Max	Length	Color	1st Contact Gender	2nd Contact Gender	Style	2nd Connector
McGill Microwave Systems 336320-12-0150	50 Ohms	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Panel Mount	Bulkhead Front Side Nut	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	RP-SMA Jack	6000 MHz	5.906 in	Black	Male	Female	AMC RP-SMA U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)
McGill Microwave Systems 336320-12-0400	50 Ohms	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Panel Mount	Bulkhead Front Side Nut	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	RP-SMA Jack	6000 MHz	15.75 in	Black	Male	Female	AMC RP-SMA U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)
McGill Microwave Systems 336320-12-0200	50 Ohms	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Panel Mount	Bulkhead Front Side Nut	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	RP-SMA Jack	6000 MHz	7.874 in	Black	Male	Female	AMC RP-SMA U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)
McGill Microwave Systems 336320-12-0300	50 Ohms	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Panel Mount	Bulkhead Front Side Nut	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	RP-SMA Jack	6000 MHz	11.811 in	Black	Male	Female	AMC RP-SMA U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)
McGill Microwave Systems 336320-12-0100	50 Ohms	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Panel Mount	Bulkhead Front Side Nut	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	RP-SMA Jack	6000 MHz	3.937 in	Black	Male	Female	AMC RP-SMA U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)
