61793 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

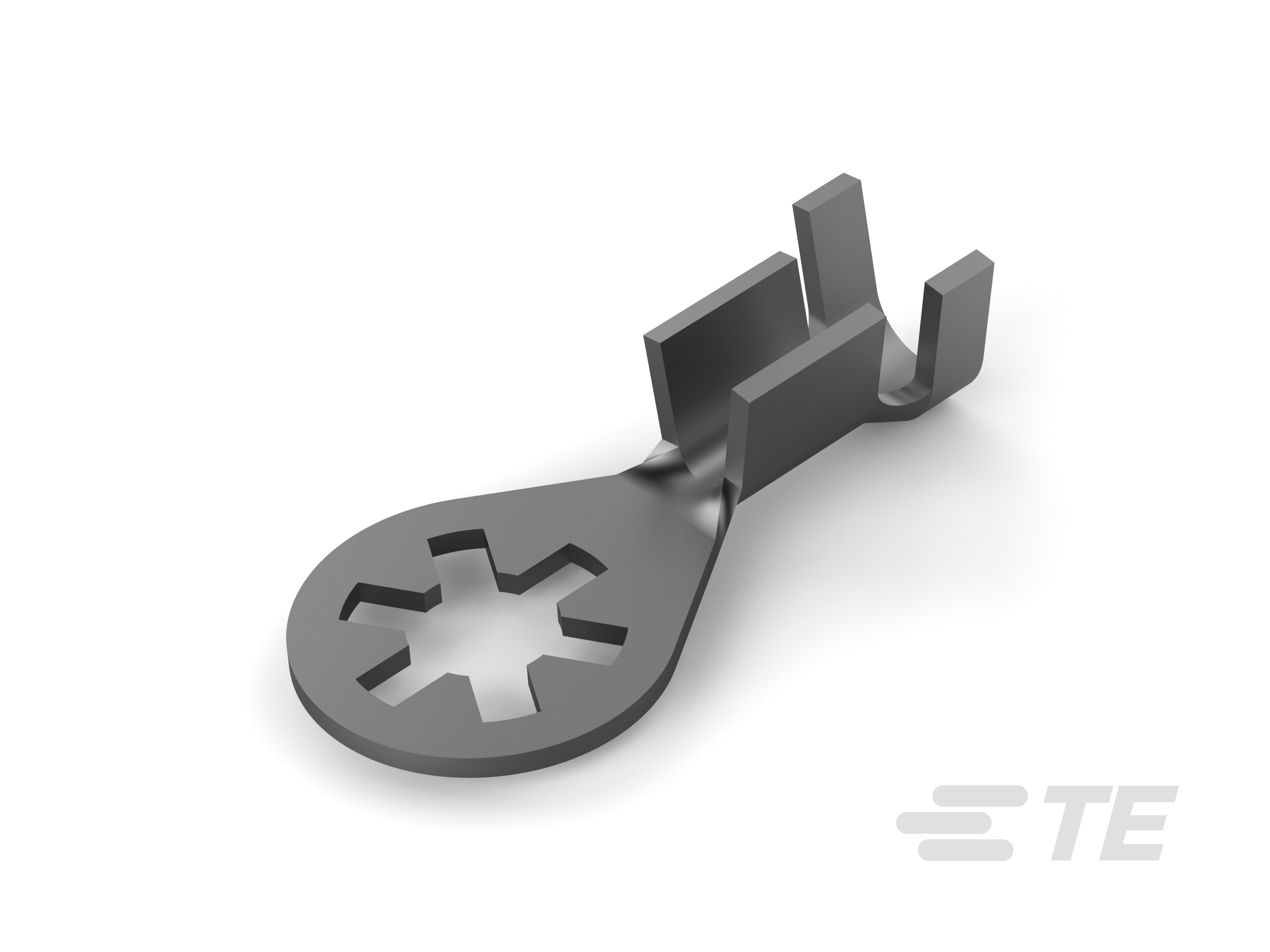

RING TONGUE TERMINAL, M3.5, #6, 14 AWG, 2 MM², AMPLIVAR SERIES
| Part | Width - Outer Edges | Stud/Tab Size | Insulation | Features | Termination | Thickness | Mounting Type | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Terminal Type | Length - Overall | Contact Finish | Contact Material | Insulation Diameter (Min) | Insulation Diameter (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.37 in | 6 Stud | Non-Insulated | Inner Teeth Serrated Termination | Crimp | 0.025 in | Free Hanging (In-Line) | 18 AWG | 14 AWG | Circular | 0.772 in | Tin | Steel | 0.105 in | 0.145 in |
