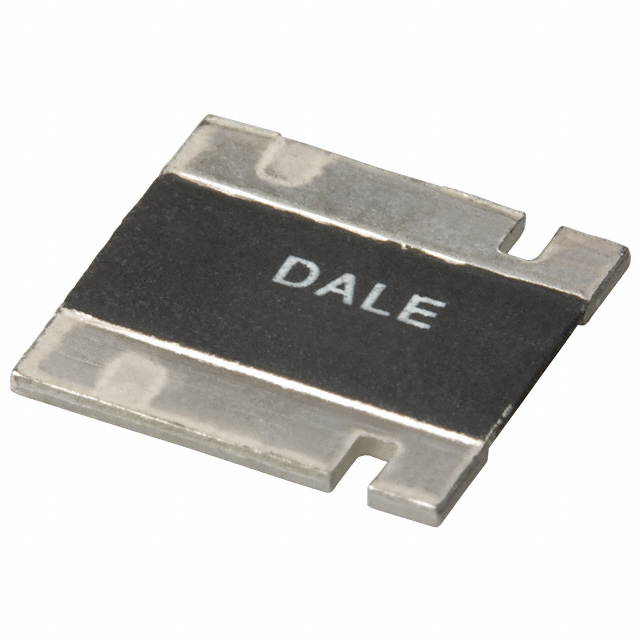

WSL3637 Series
Manufacturer: Vishay Dale
Beta
⌘K
CURRENT SENSE RESISTORS - SMD 3WATTS .008OHMS 1% 4-TERMINAL
| Part | Tolerance | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Number of Terminations | Size / Dimension Width | Size / Dimension Length | Height - Seated (Max) | Resistance | Ratings | Composition | Features | Temperature Coefficient | Power (Watts) | Package Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 1 % | -65 °C | 170 °C | Nonstandard | 4 | 0.37 in | 0.36 in | 0.035 in | 8 mOhms | AEC-Q200 | Metal Element | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 50 ppm/°C | 3 W | 3637 |
Vishay Dale | 1 % | -65 °C | 170 °C | Nonstandard | 4 | 0.37 in | 0.36 in | 0.035 in | 9.5 mOhms | AEC-Q200 | Metal Element | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 50 ppm/°C | 3 W | 3637 |
Vishay Dale | 1 % | -65 °C | 170 °C | Nonstandard | 4 | 0.37 in | 0.36 in | 0.035 in | 1.5 mOhms | AEC-Q200 | Metal Element | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 75 ppm/¯C | 3 W | 3637 |
Vishay Dale | 1 % | -65 °C | 170 °C | Nonstandard | 4 | 0.37 in | 0.36 in | 0.035 in | 10 mOhms | AEC-Q200 | Metal Element | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 50 ppm/°C | 3 W | 3637 |
