Q-040200 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

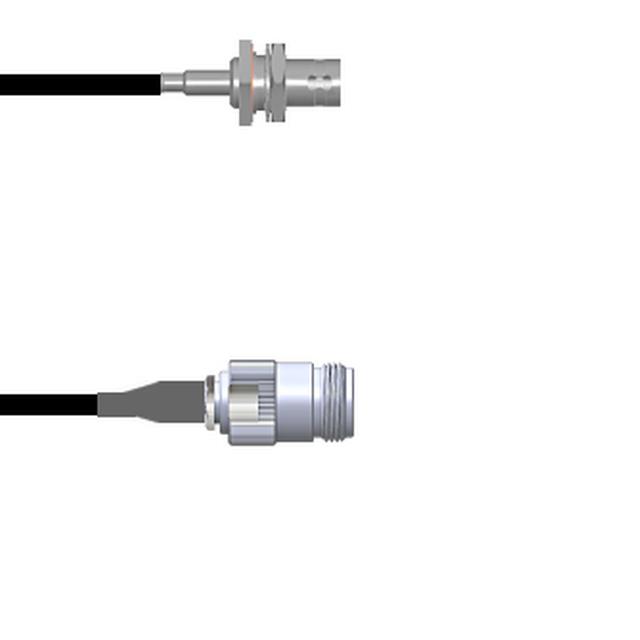

CBL ASSY BNC-NTYPE JACK-JACK 3"
| Part | 1st Connector Mounting Type | Frequency - Max | Cable Type | Length | 2nd Connector | Features | 1st Contact Gender | 1st Connector Mounting Feature | 1st Connector | 2nd Connector Mounting Type | Color | 2nd Contact Gender | Style | Overall Impedance | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Panel Mount | 4 GHz | 174 RG | 3 " | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Black | Female | BNC N-Type | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 4 GHz | 174 RG | 0.5 ft | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Black | Female | BNC N-Type | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 4 GHz | 174 RG | 118.1 in | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Black | Female | BNC N-Type | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 4 GHz | 174 RG | 24 in | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Black | Female | BNC N-Type | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 4 GHz | 174 RG | 9.843 in | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Black | Female | BNC N-Type | 50 Ohms | |

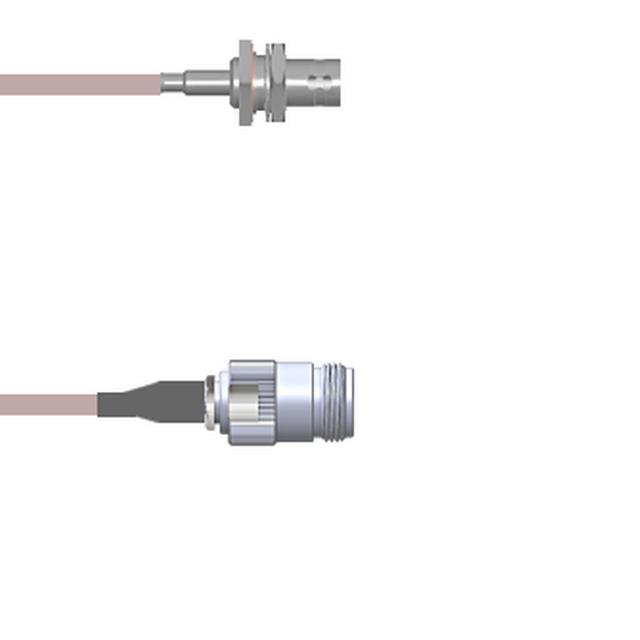

 McGill Microwave Systems | Panel Mount | 4 GHz | 316 RG | 84 in | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Copper | Female | BNC N-Type | 50 Ohms | 7 ft |
McGill Microwave Systems | Panel Mount | 4 GHz | 316 RG | 12 in | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Copper | Female | BNC N-Type | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 4 GHz | 316 RG | 9.843 in | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Copper | Female | BNC N-Type | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 4 GHz | 174 RG | 228.6 mm | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Black | Female | BNC N-Type | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 4 GHz | 316 RG | 29.53 in | N-Type Jack | Shielded | Female | Bulkhead Front Side Nut | BNC Jack | Free Hanging (In-Line) | Copper | Female | BNC N-Type | 50 Ohms |
