M12 S Code Series

Catalog

SENSOR CABLES / ACTUATOR CABLES M12 CIRCULAR METRIC CONNECTOR, S CODE, METAL, 12A, 04 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, OVERMOLDED, LENGTH 1000MM, IP68 / IP69K

Part	Usage	1st Connector Number of Positions Loaded	Assembly Configuration	1st Connector Gender	Ingress Protection IP Rating	Ingress Protection Description	1st Connector Shell Size - Insert	1st Connector Number of Positions	Cable Type	Shielding	1st Connector Type	1st Connector Orientation	Cable Material	Length	2nd Connector Type	1st Connector Mounting Type	Color	2nd Connector Shell Size - Insert (Code)	2nd Connector Gender	2nd Connector Number of Positions Loaded	2nd Connector Number of Positions	2nd Connector Mounting Type	2nd Connector Orientation
McGill Microwave Systems M12S-04BFFM-SL8S01	Industrial Environments	All	Standard	Female Sockets	IP68	Dust Tight Waterproof	M12	4 positions	Round	Unshielded	Plug	S	Polyurethane (PUR)	3.28 ft	Wire Leads	Free Hanging (In-Line)	Black
McGill Microwave Systems M12S-04BFFM-SL8G02	Industrial Environments	All	Standard	Female Sockets	IP68	Dust Tight Waterproof	M12	4 positions	Round	Unshielded	Plug	S	Polyvinyl Chloride (PVC)	6.56 ft	Wire Leads	Free Hanging (In-Line)	Black
McGill Microwave Systems M12S-04BMMM-SR8G04	Industrial Environments	All	Standard	Male Pins	IP68	Dust Tight Waterproof	M12	4 positions	Round	Unshielded	Receptacle Right Angle	S	Polyvinyl Chloride (PVC)	13.12 ft	Wire Leads	Free Hanging (In-Line)	Black
McGill Microwave Systems M12S-04PMMS-SH8B30	Industrial Environments	All	Standard	Male Pins	IP68	Dust Tight Waterproof; NMEA 2000	M12	4 positions	Individual	Unshielded	Receptacle	S		0.98 ft	Wire Leads	Panel Mount	Multiple
McGill Microwave Systems M12S04ML-12SFL-SS002	Industrial Environments	All	Standard	Male Pins	IP68	Dust Tight Waterproof	M12	4 positions	Round	Unshielded	Receptacle	S	Thermoplastic Polyurethane (TPU)	6.56 ft	Plug	Free Hanging (In-Line)	Black	M12	Female Sockets	All	4	Free Hanging (In-Line)	S
McGill Microwave Systems M12S-04PMMS-SH8C30	Industrial Environments	All	Standard	Male Pins	IP68 IP69K	Dust Tight Water Resistant Waterproof	M12	4 positions	Individual	Unshielded	Receptacle Right Angle		Polyvinyl Chloride (PVC)		Wire Leads	Panel Mount	Black
McGill Microwave Systems M12S-04BFFM-SR8S03	Industrial Environments	All	Standard	Female Sockets	IP68 IP69K	Dust Tight Water Resistant Waterproof	M12	4 positions	Round	Unshielded	Plug Right Angle	S	Thermoplastic Polyurethane (TPU)	9.84 ft	Wire Leads	Free Hanging (In-Line)	Black
McGill Microwave Systems M12S-03PFFS-SH8BA0	Industrial Environments	All	Standard	Female Sockets	IP68 IP69K	Dust Tight Water Resistant Waterproof	M12	3 positions	Individual	Unshielded	Plug	S		3.28 ft	Wire Leads	Panel Mount	Multiple

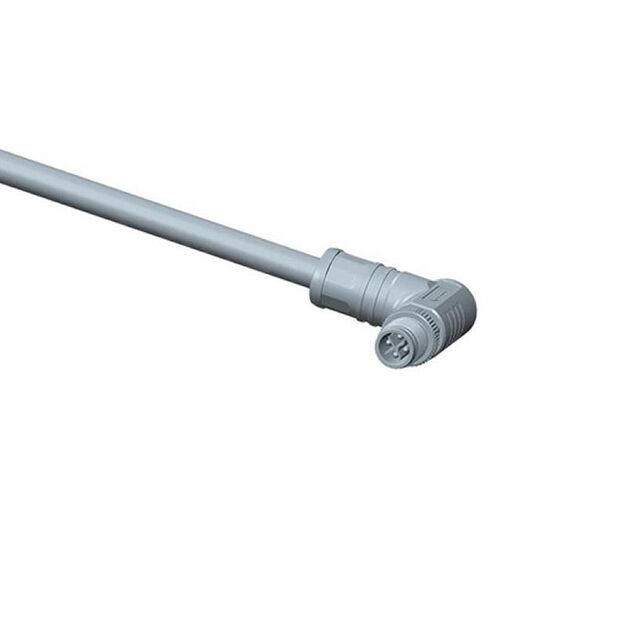

McGill Microwave Systems M12S-04BMMM-SR8G02	Industrial Environments	All	Standard	Male Pins	IP68	Dust Tight Waterproof	M12	4 positions	Round	Unshielded	Receptacle Right Angle	S	Polyvinyl Chloride (PVC)	6.56 ft	Wire Leads	Free Hanging (In-Line)	Black
McGill Microwave Systems MSSP-04BFFM-SL8S02	Industrial Environments	All	Standard	Female Sockets	IP68 IP69K	Dust Tight Water Resistant Waterproof	M12	4 positions	Round	Unshielded	Plug	S	Polyurethane (PUR)	6.56 ft	Wire Leads	Free Hanging (In-Line)	Black
