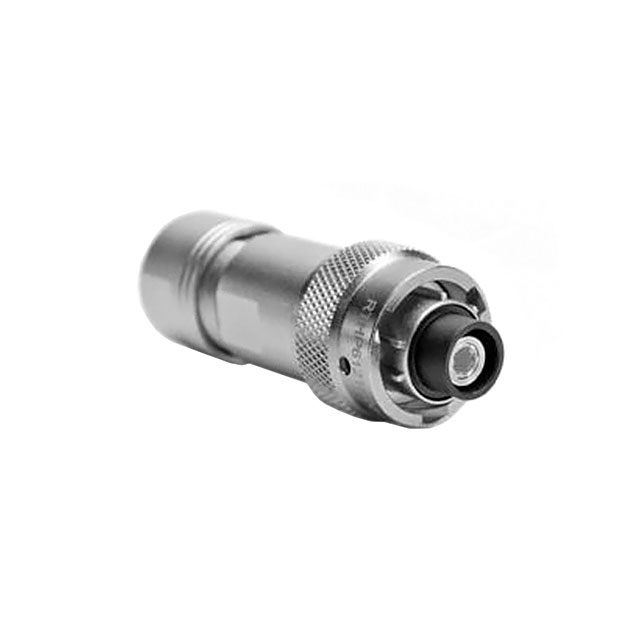

RTHP61 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
FEMALE PLUG, 8MM, CRIMP /BAG ROHS COMPLIANT: YES
| Part | Connector Type | Number of Positions | Shell Size - Insert Length | Shell Size - Insert Width | Voltage Rating | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Orientation | Shell Material | Contact Finish - Mating | Termination | Shielding | Shell Finish | Ingress Protection Description | Ingress Protection IP Rating | Current Rating | Color | Fastening Type | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Female Sockets Plug | 1 | 16 mm | 1 mm | 630 V | 125 °C | -40 °C | Free Hanging (In-Line) | N (Normal) | Zinc Die Cast | Silver | Crimp | Shielded | Nickel | Dust Tight Waterproof | IP67 | 130 A | Silver | Bayonet Lock | Metal |
 McGill Microwave Systems | Female Sockets Plug | 1 | 12 mm | 1 mm | 630 V | 125 °C | -40 °C | Free Hanging (In-Line) | N (Normal) | Zinc Die Cast | Silver | Crimp | Shielded | Nickel | Dust Tight Waterproof | IP67 | 86 A | Silver | Bayonet Lock | Metal |
