PD-3501 Series

Catalog

1PORT, 15.4W,IEEE 802.3AF INDOOR POE MIDSPAN

Part	Input Connector	Output Connector	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Number of Ports	Mounting Type	Maximum Data Rate	Typical Data Rate	Minimum Data Rate	Power (Watts) - Per Port	Compliance	Current - Output	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Output	Operating Temperature (Max)	Type	Approval Agency	Weight
Microchip Technology PD-3501G/AC-NC	RJ45 (Data Power)	Power) RJ45 (Data	240 VAC	100 VAC	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	321 mA	6.31 in	1.37 in	2.04 in	48 V	40 °C	Midspan Injector
Microchip Technology PD-3501G/AC-EU	RJ45 (Data Power)	Power) RJ45 (Data	240 VAC	100 VAC	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	321 mA	6.31 in	1.37 in	2.04 in	48 V	40 °C	Midspan Injector
Microchip Technology PD-3501G/AC-US	IEC 320-C14 (Power) RJ45 (Data)	Power) RJ45 (Data	264 V	90 V	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	0.32 A	5.5 in	1.28 in	2.09 in	48 V	40 °C	Midspan Injector	CE cUL GS UL	0.441 lb
Microchip Technology PD-3501G/AC-TW	RJ45 (Data Power)	Power) RJ45 (Data	240 VAC	100 VAC	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	321 mA	6.31 in	1.37 in	2.04 in	48 V	40 °C	Midspan Injector
Microchip Technology PD-3501G/AC-JP	RJ45 (Data Power)	Power) RJ45 (Data	240 VAC	100 VAC	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	321 mA	6.31 in	1.37 in	2.04 in	48 V	40 °C	Midspan Injector
Microchip Technology PD-3501G/AC-BR	RJ45 (Data Power)	Power) RJ45 (Data	240 VAC	100 VAC	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	321 mA	6.31 in	1.37 in	2.04 in	48 V	40 °C	Midspan Injector

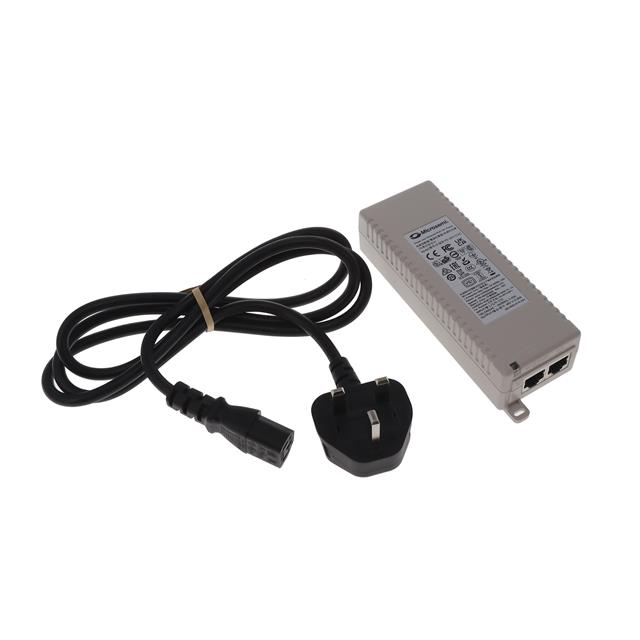

Microchip Technology PD-3501G/AC-UK	RJ45 (Data Power)	Power) RJ45 (Data	240 VAC	100 VAC	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	321 mA	6.31 in	1.37 in	2.04 in	48 V	40 °C	Midspan Injector
Microchip Technology PD-3501G/AC-AUS	RJ45 (Data Power)	Power) RJ45 (Data	240 VAC	100 VAC	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	321 mA	6.31 in	1.37 in	2.04 in	48 V	40 °C	Midspan Injector
Microchip Technology PD-3501G/AC-CN	RJ45 (Data Power)	Power) RJ45 (Data	240 VAC	100 VAC	1	Desktop	1000 Mbps	100 Mbps	10 Mbps	15.4 W	IEEE802.3af	321 mA	6.31 in	1.37 in	2.04 in	48 V	40 °C	Midspan Injector
