1986370 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUGGABLE TERMINAL BLOCK, 3.5 MM, 7 POSITIONS, 30 AWG, 14 AWG, 2 MM², SCREW

Part	Voltage - UL	Number of Positions	Plug Wire Entry Angle	Termination Style	Current - UL	Mounting Type	Type	Features	Operating Temperature (Min)	Operating Temperature (Max)	Number of Levels	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Mating Finish	Positions Per Level	Pitch	Color	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Material Flammability Rating	Housing Material	Insulation Height	Screw Size	Contact Material
TE Connectivity AMP Connectors 1986370-7	300 V	7	90 °	Screw - Rising Cage Clamp	11 A	Free Hanging (In-Line)	Female Sockets Plug	Side Stacking	-40 °C	110 °C	1	30 AWG	14 AWG	Tin	7	0.138 in	Green	0.05 mm²	2 mm²	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.756 in	M2	Phosphor Bronze
TE Connectivity AMP Connectors 1986370-4	300 V	4	90 °	Screw - Rising Cage Clamp	11 A	Free Hanging (In-Line)	Female Sockets Plug	Side Stacking	-40 °C	110 °C	1	30 AWG	14 AWG	Tin	4	0.138 in	Green	0.05 mm²	2 mm²	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.756 in	M2	Phosphor Bronze
TE Connectivity AMP Connectors 1-1986370-3	300 V	13	90 °	Screw - Rising Cage Clamp	11 A	Free Hanging (In-Line)	Female Sockets Plug	Side Stacking	-40 °C	110 °C	1	30 AWG	14 AWG	Tin	13	0.138 in	Green	0.05 mm²	2 mm²	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.756 in	M2	Phosphor Bronze
TE Connectivity AMP Connectors 1-1986370-6	300 V	16	90 °	Screw - Rising Cage Clamp	11 A	Free Hanging (In-Line)	Female Sockets Plug	Side Stacking	-40 °C	110 °C	1	30 AWG	14 AWG	Tin	16	0.138 in	Green	0.05 mm²	2 mm²	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.756 in	M2	Phosphor Bronze

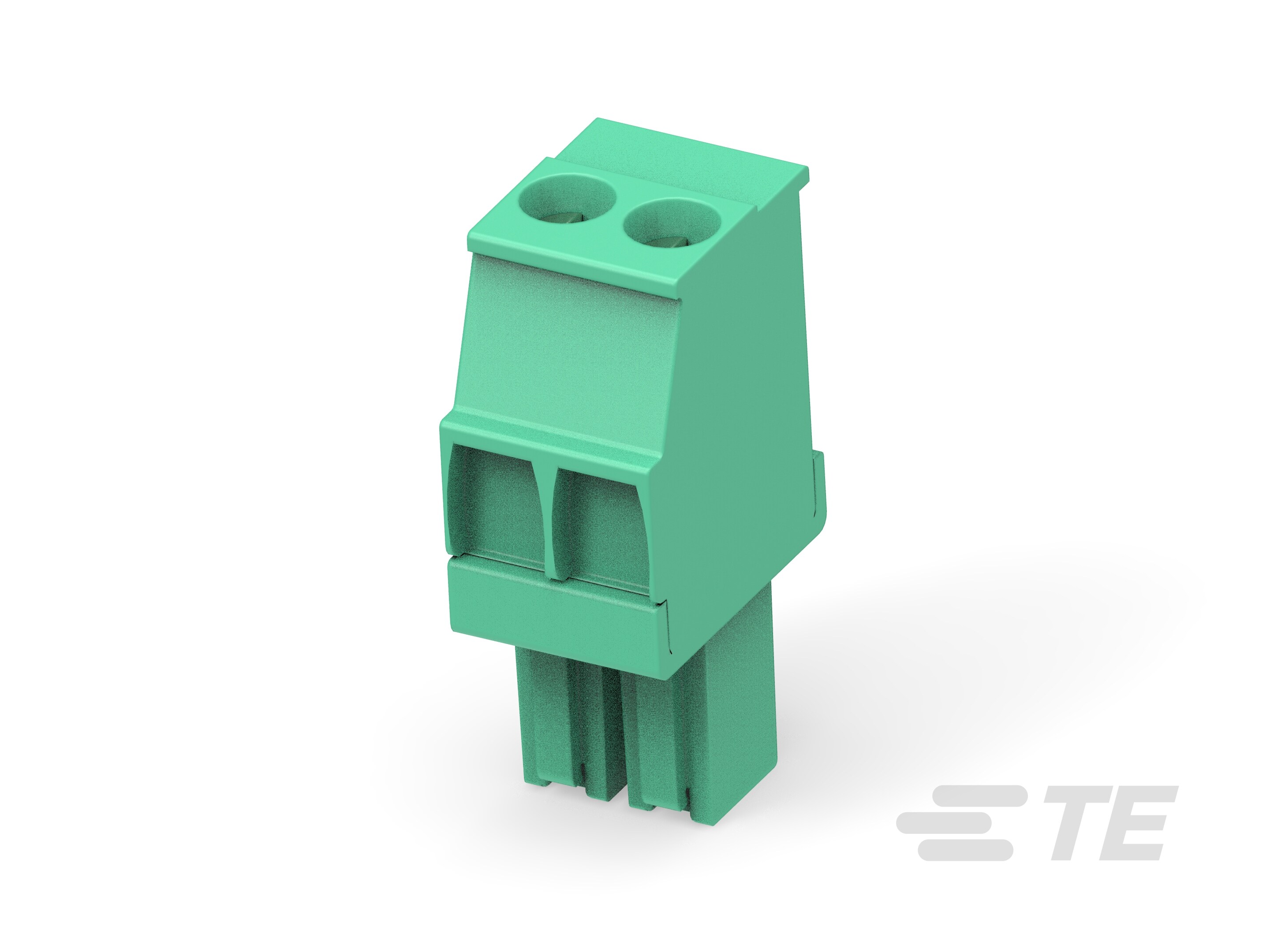

TE Connectivity AMP Connectors 1986370-2	300 V	2	90 °	Screw - Rising Cage Clamp	11 A	Free Hanging (In-Line)	Female Sockets Plug	Side Stacking	-40 °C	110 °C	1	30 AWG	14 AWG	Tin	2	0.138 in	Green	0.05 mm²	2 mm²	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.756 in	M2	Phosphor Bronze

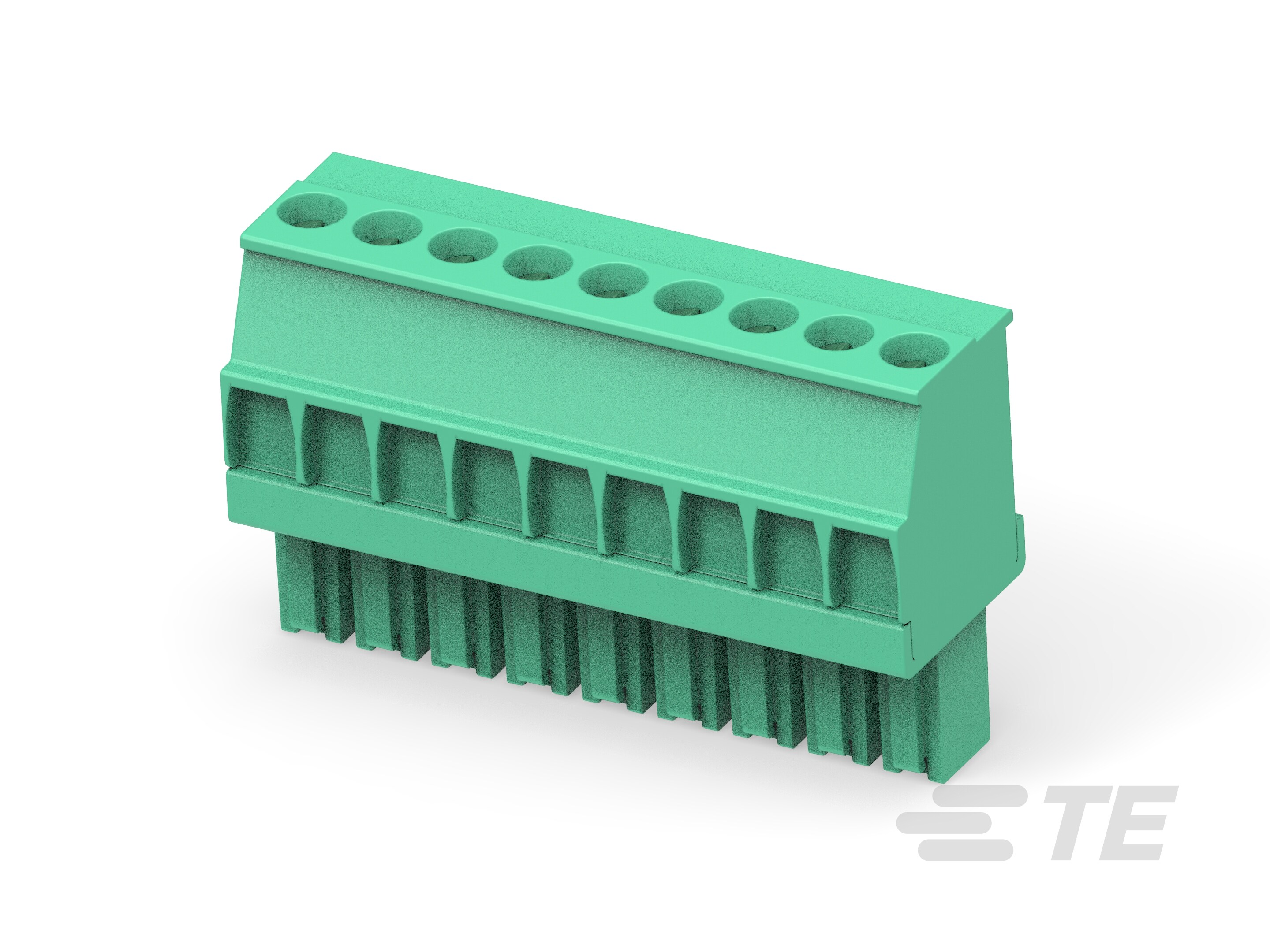

TE Connectivity AMP Connectors 1986370-9	300 V	9	90 °	Screw - Rising Cage Clamp	11 A	Free Hanging (In-Line)	Female Sockets Plug	Side Stacking	-40 °C	110 °C	1	30 AWG	14 AWG	Tin	9	0.138 in	Green	0.05 mm²	2 mm²	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.756 in	M2	Phosphor Bronze
TE Connectivity AMP Connectors 1-1986370-4	300 V	14	90 °	Screw - Rising Cage Clamp	11 A	Free Hanging (In-Line)	Female Sockets Plug	Side Stacking	-40 °C	110 °C	1	30 AWG	14 AWG	Tin	14	0.138 in	Green	0.05 mm²	2 mm²	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.756 in	M2	Phosphor Bronze
