3212-40 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

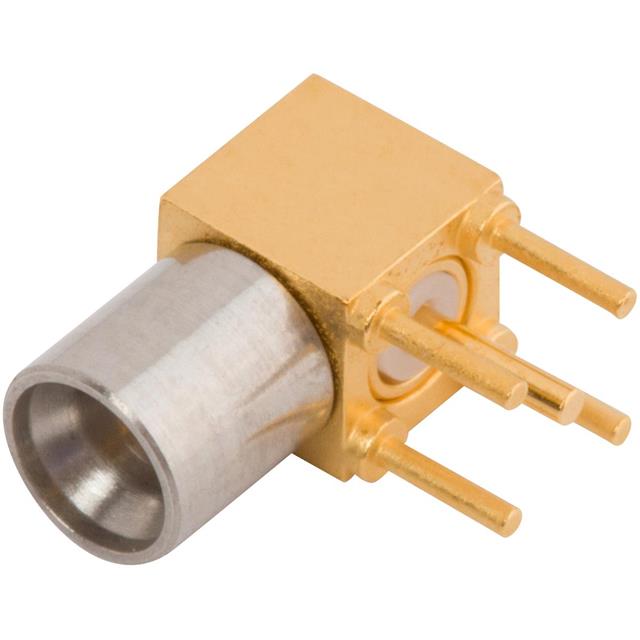

CONN SMPM PLUG R/A 50 OHM PCB
| Part | Dielectric Material | Body Finish | Body Material | Operating Temperature (Max) | Operating Temperature (Min) | Center Contact Plating | Frequency - Max | Housing Color | Contact Termination | Connector Type | Impedance | Number of Ports | Features | Mounting Type | Fastening Type | Center Contact Material | Connector Style | Shield Termination | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | 125 °C | -55 °C | Gold | 26.5 GHz | Gold | Solder | Male Pin Plug | 50 Ohm | 1 | Full Detent | Right Angle Through Hole | Snap-On | Beryllium Copper | SMPM | Solder | |
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | 125 °C | -55 °C | Gold | 26.5 GHz | Gold | Solder | Male Pin Plug | 50 Ohm | 1 | Smooth Bore | Right Angle Through Hole | Snap-On | Beryllium Copper | SMPM | Solder | 500 cycles |
