LMR-500 Series

Catalog

LMR-500 W/NON-HALOGEN FR JKT, LI

Part	Shield Material	Conductor Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Dielectric Diameter	Velocity of Propagation (VoP)	Jacket (Insulation) Material	Shield Type	Jacket Color	Impedance	Features	Jacket (Insulation) Diameter	Conductor Strand	Cable Type	Length	Length
McGill Microwave Systems LMR-500-FR	Aluminum Copper Tinned	Aluminum Copper Coated	-40 °C	85 °C	Foam Polyethylene (FPE)	0.37 in	82 %	Polyethylene (PE) Riser	Braid	Black	50 Ohm	Fire Retardant	0.5 in	Solid	Coaxial Riser

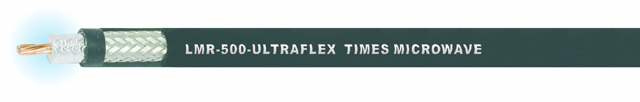

McGill Microwave Systems LMR-500-ULTRAFLEX	Aluminum Copper Tinned	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.37 in	85 %	Thermoplastic Elastomer (TPE)	Braid	Black	50 Ohm		0.5 in		Coaxial
McGill Microwave Systems LMR-500-DB	Aluminum Copper Tinned	Aluminum Copper Coated	-40 °C	85 °C	Foam Polyethylene (FPE)	0.37 in	82 %	Polyethylene (PE)	Braid	Black	50 Ohm	Direct Burial Watertight	0.5 in	Solid	Coaxial

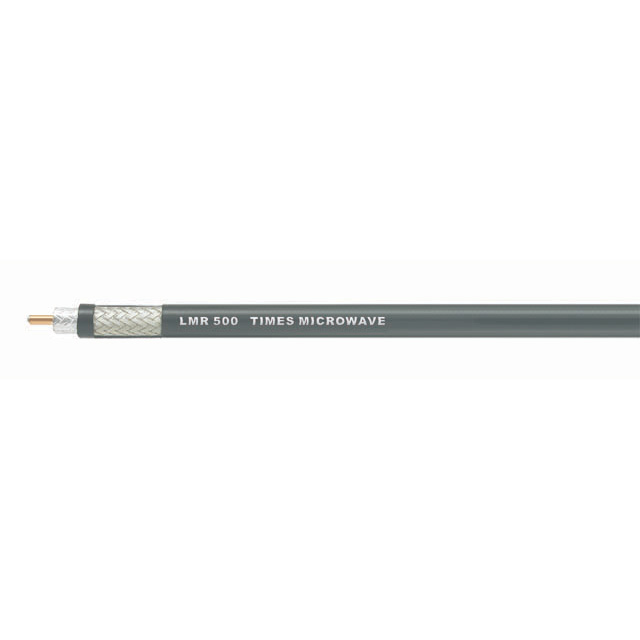

McGill Microwave Systems LMR-500	Aluminum Copper Tinned	Aluminum Copper Coated	-40 °C	85 °C	Foam Polyethylene (FPE)	0.37 in	82 %	Polyethylene (PE)	Braid Foil	Black	50 Ohm		0.5 in	Solid	Coaxial	50 ft 100 ft 250 ft	Enter Number of Feet in Order Quantity

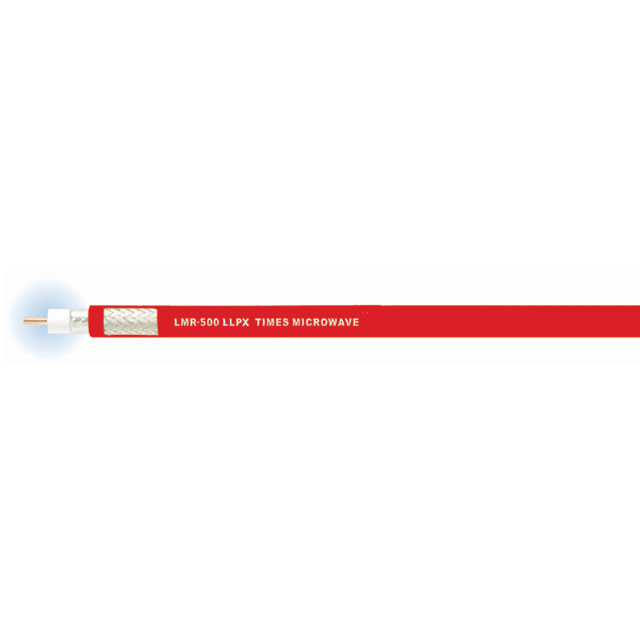

McGill Microwave Systems LMR-500-LLPX	Aluminum Copper Tinned	Aluminum Copper Coated	-40 °C	125 °C	Polytetrafluoroethylene (PTFE)	0.37 in	76 %	Fluoropolymer Plenum	Braid	Red	50 Ohm		0.465 in	Solid	Coaxial Plenum
