RT00103 Series

Catalog

RECEPTACLE, SQUARE FLANGE, 6 (3+

Part	Shell Size - Insert	Mounting Feature	Fastening Type	Contact Size	Type	Orientation	Shell Material	Primary Material	Material Flammability Rating	Connector Type	Contact Type	Note	Contact Shape	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Mounting Type	Housing Color	Operating Temperature (Min)	Operating Temperature (Max)	Shell Finish	Number of Positions	Insert Material	Shell Size - Insert Length	Shell Size - Insert Width

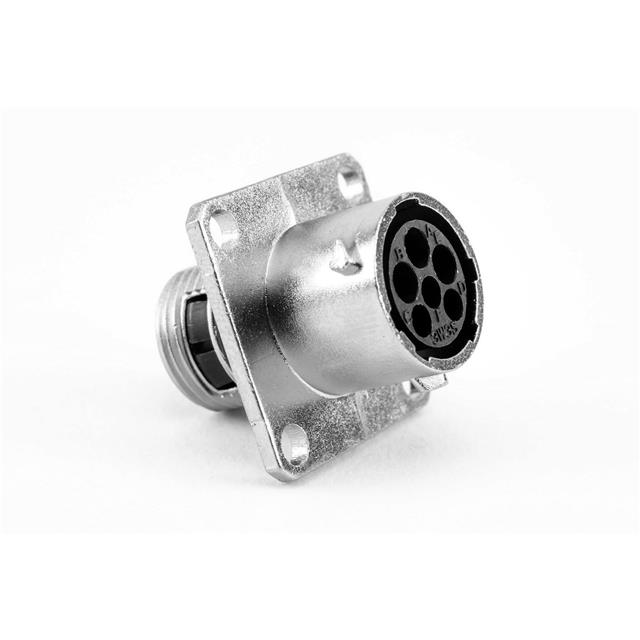

McGill Microwave Systems RT00103W3SNH	10-3W3	Flange	Bayonet Lock	16 20	For Female Sockets	N (Normal)	Zinc Alloy	Metal	UL94 V-0	Receptacle Housing	Crimp	Contacts Not Included	Circular	Dust Tight Waterproof	IP67	Shielded	Panel Mount	Silver	-40 °C	105 °C	Nickel	6	Thermoplastic
McGill Microwave Systems RT00103PNH		Flange	Bayonet Lock	16 S	For Male Pins	N (Normal)	Zinc Alloy	Metal	UL94 V-0	Receptacle Housing	Crimp			Dust Tight Waterproof	IP67	Shielded	Free Hanging (In-Line) Panel Mount	Silver			Nickel	3		10 mm	3 mm
McGill Microwave Systems RT00103SNH		Flange	Bayonet Lock	16 S	For Female Sockets	N (Normal)	Zinc Alloy	Metal	UL94 V-0	Receptacle Housing	Crimp			Dust Tight Waterproof	IP67	Shielded	Free Hanging (In-Line) Panel Mount	Silver			Nickel	3		10 mm	3 mm
McGill Microwave Systems RT00103SNH03

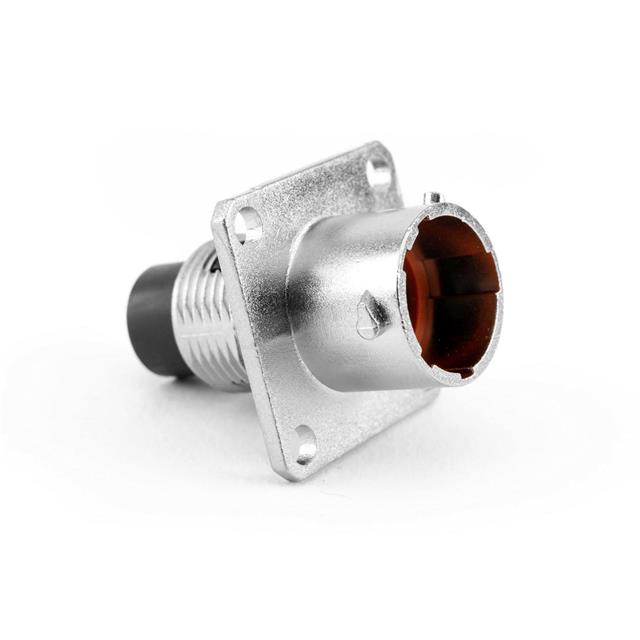

McGill Microwave Systems RT00103W3PNH	10-3W3	Flange	Bayonet Lock	16 20	For Male Pins	N (Normal)	Zinc Alloy	Metal	UL94 V-0	Receptacle Housing	Crimp	Contacts Not Included	Circular	Dust Tight Waterproof	IP67	Shielded	Panel Mount	Silver	-40 °C	105 °C	Nickel	6	Thermoplastic
McGill Microwave Systems RT00103PNH03		Flange	Bayonet Lock	16 S	For Male Pins	N (Normal)	Zinc Alloy	Metal	UL94 V-0	Receptacle Housing	Crimp			Dust Tight Waterproof	IP67	Shielded	Free Hanging (In-Line) Panel Mount	Silver			Nickel	3		10 mm	3 mm
McGill Microwave Systems RT00103W3SNH03	10-3W3	Flange	Bayonet Lock	16 20	For Female Sockets	N (Normal)	Zinc Alloy	Metal	UL94 V-0	Receptacle Housing	Crimp	Contacts Not Included	Circular	Dust Tight Waterproof	IP67	Shielded	Panel Mount	Silver	-40 °C	125 °C	Nickel	6	Thermoplastic
McGill Microwave Systems RT00103W3PNH03	10-3W3	Flange	Bayonet Lock	16 20	For Male Pins	N (Normal)	Zinc Alloy	Metal	UL94 V-0	Receptacle Housing	Crimp	Contacts Not Included	Circular	Dust Tight Waterproof	IP67	Shielded	Panel Mount	Silver	-40 °C	125 °C	Nickel	6	Thermoplastic
