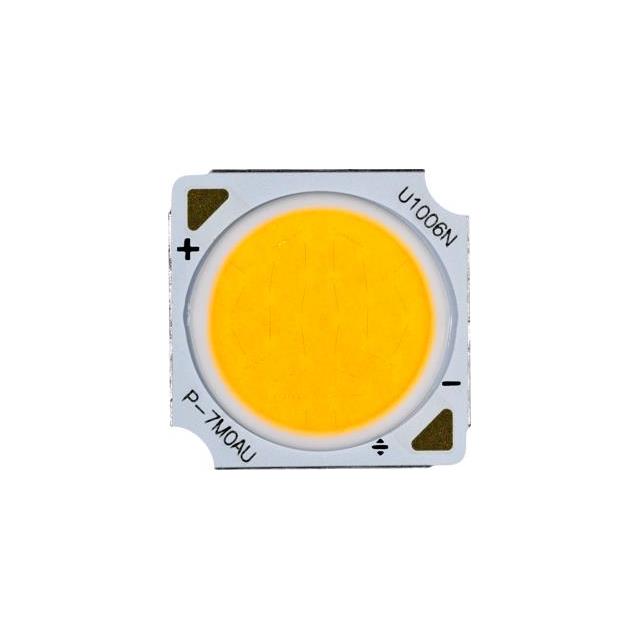

CMU1006 Series

Catalog

LED XLAMP COOL WHITE 6500K

...

Part	Size / Dimension Width	Size / Dimension Length	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Mounting Type	Lumens/Watt	Height - Seated (Max)	Flux (Typical)	CCT (K)	CCT Description	Viewing Angle	Current - Test	Package / Case	Color	Current - Max	Type	Height	Light Emitting Surface (LES) Diameter	Temperature - Test	Lens Type	Configuration	Luminous Flux (Typical)
CreeLED, Inc. CMU1006-0000-000N0B0A65E	0.531 in	0.531 in	33.7 V	70	Surface Mount	185 lm/W	0.067 in	1124 lm	6500 K	5-Step MacAdam Ellipse	115 °	180 mA	2-SMD No Lead	Cool White	480 mA
CreeLED, Inc. CMU1006-R160-00PN0U0A35H	13.5 mm	13.5 mm	33.7 V	90					3500 K		115 °	180 mA		Warm White	480 mA	Chip On Board (COB)	1.5 mm	9.8 mm	85 °C	Flat	Square
CreeLED, Inc. CMU1006-R160-000N0Z0A35H	13.5 mm	13.5 mm	33.7 V	95		131 lm/W			3500 K	2-Step MacAdam Ellipse	115 °	180 mA		Warm White	480 mA	Chip On Board (COB)	1.5 mm	9.8 mm	85 °C	Flat	Square	793 lm
CreeLED, Inc. CMU1006-R160-00PN0Z0A30H	13.5 mm	13.5 mm	33.7 V	95					3000 K		115 °	180 mA		Warm White	480 mA	Chip On Board (COB)	1.5 mm	9.8 mm	85 °C	Flat	Square
CreeLED, Inc. CMU1006-R160-00PN0U0A40G	13.5 mm	13.5 mm	33.7 V	90					4000 K		115 °	180 mA		Neutral White	480 mA	Chip On Board (COB)	1.5 mm	9.8 mm	85 °C	Flat	Square
CreeLED, Inc. CMU1006-R160-00PN0U0A30H	13.5 mm	13.5 mm	33.7 V	90					3000 K		115 °	180 mA		Warm White	480 mA	Chip On Board (COB)	1.5 mm	9.8 mm	85 °C	Flat	Square
CreeLED, Inc. CMU1006-0000-000N0H0A27H	0.531 in	0.531 in	33.7 V	80	Surface Mount	154 lm/W	0.067 in	934 lm	2700 K	2-Step MacAdam Ellipse	115 °	180 mA	2-SMD No Lead	Warm White	480 mA
CreeLED, Inc. CMU1006-0000-000N0Z0A35H	13.5 mm	13.5 mm	33.7 V	95		131 lm/W			3500 K	2-Step MacAdam Ellipse	115 °	180 mA		Warm White	480 mA	Chip On Board (COB)	1.5 mm	9.8 mm	85 °C	Flat	Square	714 lm
CreeLED, Inc. CMU1006-R160-000N0B0A57E	13.5 mm	13.5 mm	33.7 V	70		190 lm/W			5700 K	5-Step MacAdam Ellipse	115 °	180 mA		Cool White	480 mA	Chip On Board (COB)	1.5 mm	9.8 mm	85 °C	Flat	Square	1150 lm
CreeLED, Inc. CMU1006-R160-000N0H0A22G	13.5 mm	13.5 mm	33.7 V	80		141 lm/W			2200 K	3-Step MacAdam Ellipse	115 °	180 mA		Warm White	480 mA	Chip On Board (COB)	1.5 mm	9.8 mm	85 °C	Flat	Square	858 lm
