3100-40 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

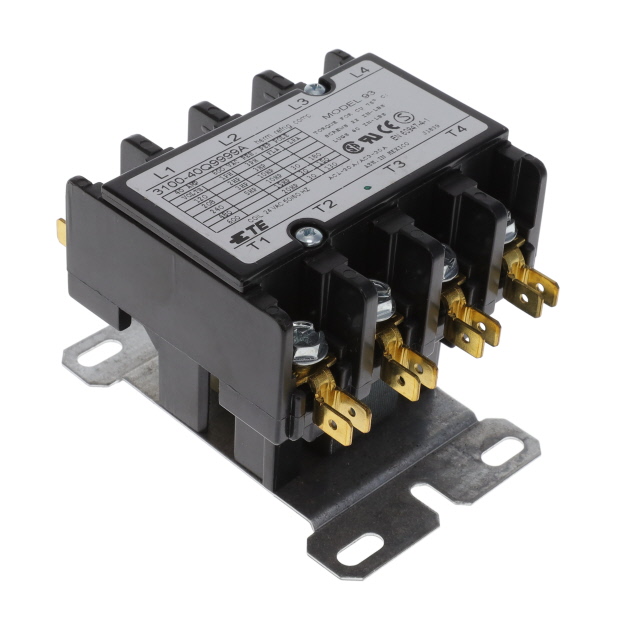

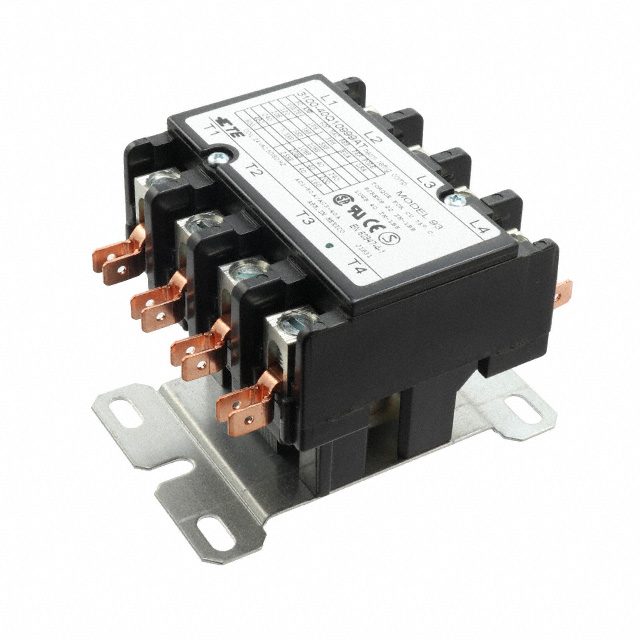

RELAY CONTACTOR 4PST 40A 24V
| Part | Coil Power | Coil Resistance | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Must Operate Voltage | Contact Rating (Current) | Pin Count | Contact Form | Switching Voltage AC (Max) | Features | Quick Connect Size (0.250") | Termination Style | Must Release Voltage | Coil Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 9 VA | 5 Ohms | Silver Cadmium Oxide (AgCdO) | -40 °C | 65 °C | 19.2 V | 40 A | 4 | 4 DM Form PST-NO X | 600 VAC | Class B Insulation | 0.25 in | Quick Connect Screw Terminal | 6 VDC | 24 VDC | Chassis Mount |
 TE Connectivity AMP Connectors | 9.5 VA | 520 Ohms | Silver Cadmium Oxide (AgCdO) | -40 °C | 65 °C | 177 VAC | 30 A | 4 | 4 DM Form PST-NO X | 600 VAC | Class B Insulation | 0.25 in | Quick Connect Screw Terminal | 40 VDC | 240 V | Chassis Mount |
 TE Connectivity AMP Connectors | 9 VA | 5 Ohms | Silver Cadmium Oxide (AgCdO) | -40 °C | 65 °C | 19.2 V | 30 A | 4 | 4 DM Form PST-NO X | 600 VAC | Class B Insulation | 0.25 in | Quick Connect Screw Terminal | 6 VDC | 24 VDC | Chassis Mount |
